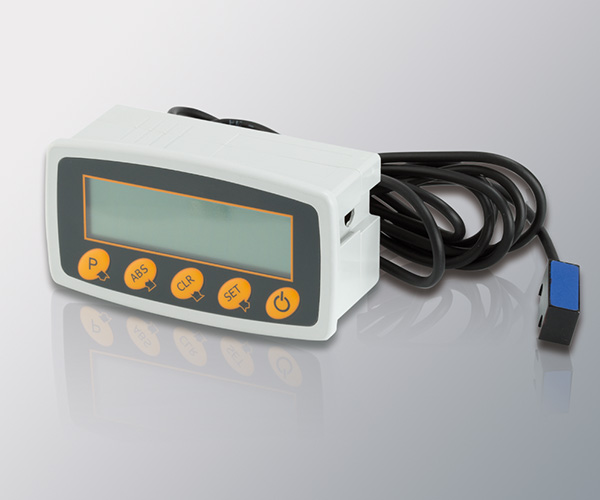

DIGITAL READOUT WITH MAGNETIC SENSOR

  • Magnetic detection without contact
  • Easy assembly
  • One axis Digital Readout with 6 ½ digit LCD and negative sign
  • Programmable resolution
  • Accuracy ±20 μm
  • Polar pitch 2+2
  • Wide alignment tolerances
  • Magnetic Sensor of small overall dimensions
  • Connection by cable (other cable lenght available)
Buy Online
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        MECHANICAL  AND ELECTRICAL SPECIFICATIONS
        Display 6 ½ digits LCD h = 13 mm and negative sign
        Programmable resolution 1.0 – 0.1 – 0.05 – 0.01 mm
        0.01 – 0.001 – 1/16 – 1/32 – 1/64 inch
        1° – 0.1° – 0.01° – 0.001° angular
        Repeatability ± 1/2 digit
        Power supply Batteries x2 LR6 AA
        External (1,5…5 V)
        Operating temperature range 0°C to +50°C
        Storage temperature range -20°C to +70°C
        Humidity 95% (not condensed)
        Readout weight 100 g
        Readout Vibration (EN 60068-2-6) 25 m/s²
        (55Hz…2000Hz)
        Readout Protection class (EN 60529) IP 43

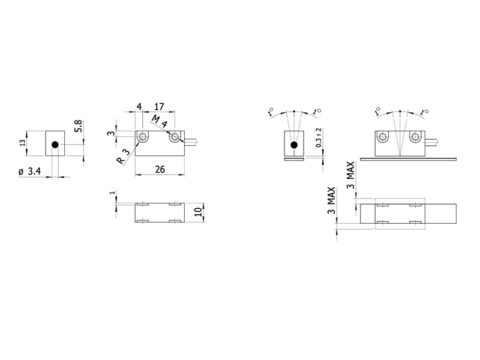

        SENSOR SPECIFICATIONS
        Maximum speed 4 m/s
        Sensor – magnetic band gap 0,3…2 mm
        Accuracy ± 20 μm
        Magnetic band to be used with – pole pitch CSM (2+2mm)
        Vibration (EN 60068-2-6) 300 m/s² (55Hz…2000Hz)
        Shock (EN 60068-2-27) 1000 m/s² (11 ms)
        Protection class (EN 60529) IP 67
        BAND SPECIFICATIONS
        Pole pitch 2+2 mm
        Accuracy at 20°C ±30 μm/m
        Width band 10 mm
        Thickness band 1,3 mm
        Maximum length 50 m
        Thermal expansion 10,5 x 10¯⁶ °C¯¹ T ref = 20°C ± 0,1°C
        Bending radius ≥ 130 mm
        Operating temperature range 0°C to 70°C
        Storage temperature range -20°C to 80°C

        IMPORTANT: In order not to compromise the accuracy of the system, the magnetic band must be longer than the machine run of at least 4 cm from each side.
