Spring-flex

  1. Home
  2. Accessories
  3. Flexible Couplings
  4. Spring-flex
3D

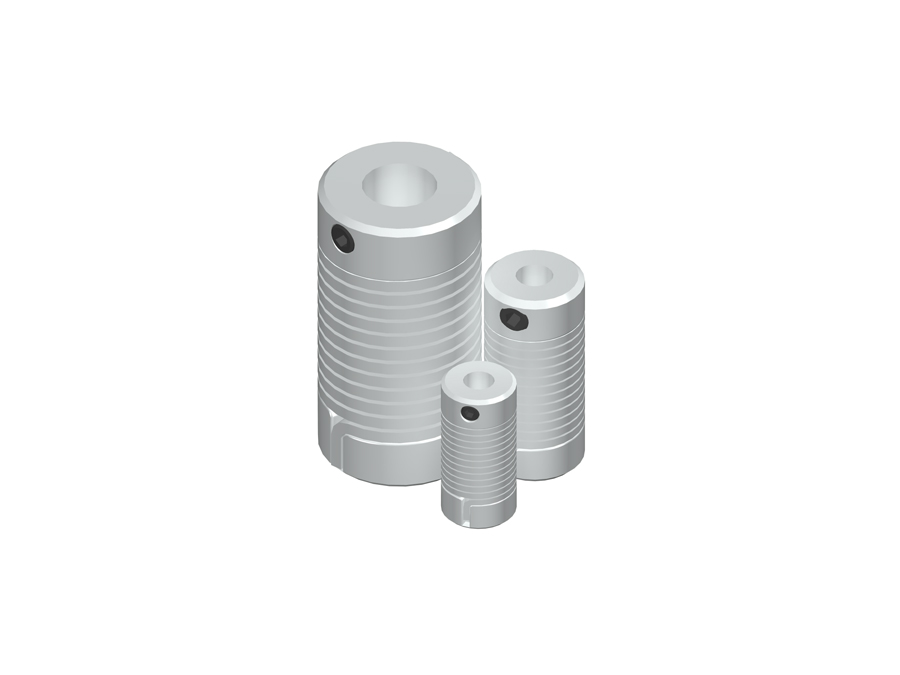

FLEXIBLE COUPLING SPRINGS

  • Absorption of significant misalignment
  • Elimination of loads due to shaft misalignment
  • Free of wear and fatigue
  • Vibration absorption
  • High torsional elasticity
  • Protection against sudden acceleration in transmisison
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.



          TECHNICAL SPECIFICATIONS
          Torque Clamping torque Max. Speed Admissible max. misalignement Torsion spring stiffness Radial spring stiffness Wheight Inertia
          Angular Axial Radial
          SFP 1225 15 Ncm 70 Ncm 8.000 rpm ±5 degree ±0,5 mm ±0,5 mm 40 Nm/rad 60 Nm/mm 14 g 2,8 gcm2
          SFP 1635 50 Ncm 150 Ncm 3.000 rpm ±5 degree ±1 mm ±1 mm 50 Nm/rad 70 N/mm 28 g 10 gcm2
          SFP 2650 150 Ncm 300 Ncm 3.000 rpm ±5 degree ±1 mm ±1,5 mm 40 Nm/rad 60 N/mm 100 g 95 gcm2
