DRAW WIRE ANALOG ENCODER

  • Analog output
  • Resolution up to 16 bits
  • Measuring range configurable up to 1250 mm
  • Misalignment of the extendable cable up to 20°
  • Protection class IP51 according to DIN EN 60529
  • Limit Switch Function

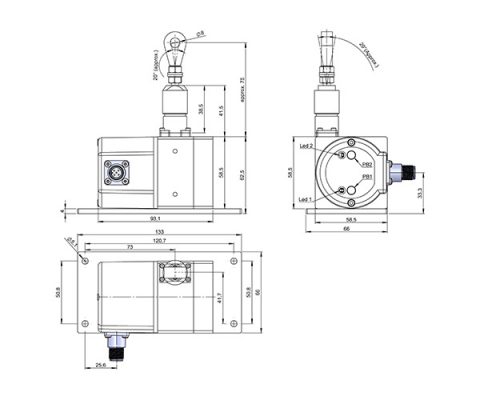

  • Connection by cable (other cable length available) or industrial connector M12
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        MECHANICAL SPECIFICATIONS
        Materials Cover: Aluminium
        Housing: Aluminium
        Shaft: Stainless Steel
        Travel 125 mm ±0,05 / per turn
        Cable Ø 0,61 stainless steel AISI316
        Measurement range, up to (mm) 1250 mm.
        Maximum cable extension (mm) 1260 mm.
        Minimum cable static tension 3 N
        Maximum cable static tension 9 N
        Maximum extension acceleration 35 m/s2
        Maximum recovery accelaration 10 m/s2
        Maximum speed 1 m/s
        Protection against dust and splashes according to DIN EN 60529 IP51
        Operating temperature range -40ºC to +85ºC
        Weight 0,9 kg.
        Vibration according to DIN EN 60068-2-6 100 m/s (10Hz…2000Hz)
        Shock according to DIN EN 60068-2-6 1000 m/s (6ms)
        ELECTRICAL SPECIFICATIONS
        Interface Analog
        Electronic output 0..20mA , 4..20mA, 0..5V, 0..10V
        Power supply (VCC) 7-30V, 12-30V
        Consumption ≤ 100 mA
        Resolution 12 or 16 bits
        Range up to 1.250 mm
        Configurable parameters Range, Direction and Preset
        Frequency 100 kHz
        Short circuit protection Yes
        Protection polarity inversion Yes
