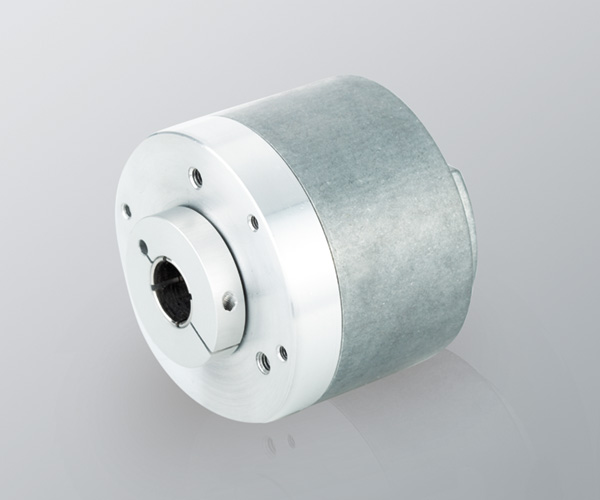

SERIE SMRS59

SINGLETURN ABSOLUT ENCODER
- SSI
- SSI + Sin/Cos
- BiSS-C
- BiSS-C + Sin/Cos

SSI / SSI + SinCos / BiSS-C / BiSS-C + SinCos

  • Singleturn resolution up to 17 bits
  • Protection class IP54 according to DIN EN 60529

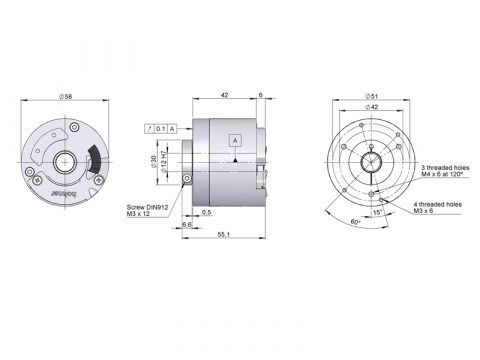

  • External diameter 58 mm
  • Hollow shaft
Ask an expert

Our team of experts will asnwer your technical, product or application questions as soon as possible.

Name*

E-mail*

Phone

Company

Country

Message


I have read and I accept the terms and conditions.*

HOHNER AUTOMATICOS, S.L. informs you that the personal data that you provide by filling out this form will be treated with the purpose of sending you the information requested. The legitimation of the treatment is carried out through the consent of the interested party. Failure to enter your personal data will make it impossible to meet your request. You can exercise your rights of access, rectification, cancellation and deletion of personal data by contacting info@encoderhohner.com or by post to HOHNER AUTOMATICOS, S.L., Prolongació C/Sant Francesc, s/n, 17400 - Breda (Girona) Spain.

Fields with a * are required.

Download Datasheet

Plaease enter your email to download product Datasheet.

E-mail

I have read and I accept the terms and conditions.*

HOHNER AUTOMATICOS, S.L. informs you that the personal data that you provide by filling in this form will be treated with the purpose of sending you the information requested. You can exercise your rights of access, rectification, cancellation and deletion of personal data by contacting info@encoderhohner.com.

Name*

E-mail*

Phone

Company

Country

Message


I have read and I accept the terms and conditions.*

HOHNER AUTOMATICOS, S.L. informs you that the personal data that you provide by filling out this form will be treated with the purpose of sending you the information requested. The legitimation of the treatment is carried out through the consent of the interested party. Failure to enter your personal data will make it impossible to meet your request. You can exercise your rights of access, rectification, cancellation and deletion of personal data by contacting info@encoderhohner.com or by post to HOHNER AUTOMATICOS, S.L., Prolongació C/Sant Francesc, s/n, 17400 - Breda (Girona) Spain.

Fields with a * are required.

TECHNICAL SPECIFICATIONS
Housing Aluminium
Shaft Stainless steel
Bearings Ballraces
Bearings lifetime 1×1010 rev
Maximum number of revolutions permitted mechanically 6000 rpm
Protection against dust and splashes according to DIN EN 60529 IP54
Rotor inertia moment 30 gcm2
Starting torque at 20ºC (68ºF) Max. 2 Ncm
Maximum load permitted on axial shaft 40 N
Maximum load permitted on radial shaft 60 N
Weight 350gr
Operating temperature range -10ºC to +70ºC
Vibration 100 m/s2 (10Hz…2000Hz)
Shock 1000 m/s2 (6ms)
Consumption max. 90mA
Power supply 10..30Vdc / 5Vdc
Absolut interface SSI / BISS
Electrical output (absolut) RS 422
Absolut max. frequency (SSI/BISS) 1.5MHz SSI / 4MHz BISS
Linearity ±1/2 LSB
Absolut singleturn resolution 10, 12, 13, 14 or 17 bits
Incremental electrical output Sin/Cos, 1Vpp
Incremental singleturn resolution 2048 ppv
Incremental max.frequency (at.3dB) 200KHz
Available codes (absolut) Binary, Gray or configurable
Direction External controlled
nReset/nPreset By pushbutton
Diagnosis led Green = ok, Red = alarm
Connection Cable (2m)
