SERIE MIE48

  1. Home
  2. Magnetic Encoders
  3. Incremental magnetic
  4. SERIE MIE48
  • MIE48

MAGNETIC INCREMENTAL ENCODER

  • Resolution up to 1.024 pulses per turn
  • Non-contacting measuring system
  • 24 VDC Push-Pull
  • High protection class IP65
  • Compact dimensions
  • Axial connection M12 4p
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

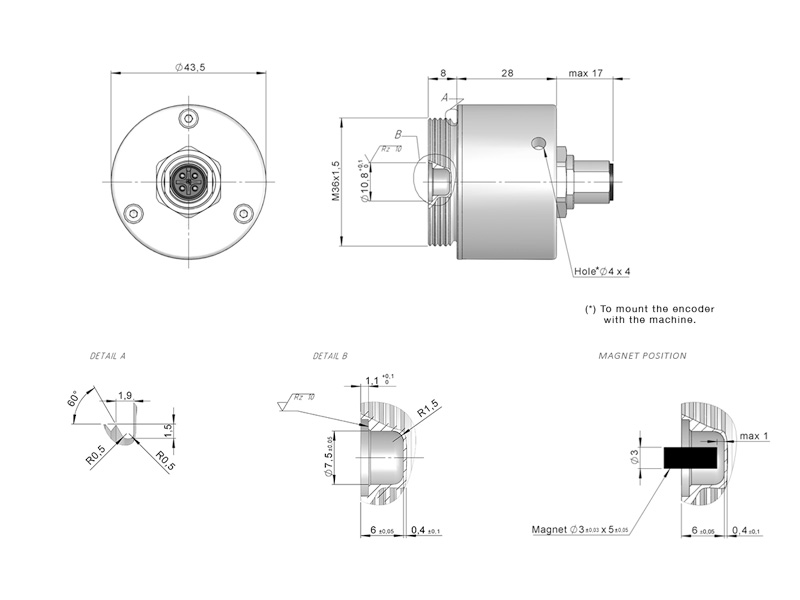

        MECHANICAL SPECIFICATIONS
        Materials Housing: AISI 304. Option 16MNCrS5 or AISI 316 (1.4401) or Aluminium EN-AW 6082
        Cover: AISI 304
        Maximum number of revolutions permitted mechanically 5000 rpm
        Shaft diameter (support of magnet) Ø 6 mm
        Housing fixing M36 x 1,5
        Lateral displacement ±0.2 mm Max.
        Radial displacement ±3°
        Magnet Ø 3 (±0,03) x 5 (±0,05) mm (Neodymium)
        Magnet diameter 3 to 6 mm
        Protection against dust and splashes according to DIN EN 60529 IP65
        Operating temperature range -20°C to +85°C
        Vibration according to DIN EN 60068-2-6 100 m/s² (10Hz…2000Hz)
        Shock according to DIN EN 60068-2-27 1000 m/s² (6ms)
        Connection Axial connection M12 4p (Male thread)
        ELECTRICAL SPECIFICATIONS
        Resolution 32, 64, 128, 256, 512, 1024 ppr
        Angular resolution 0,1°
        Power supply 5..30VDC
        Electronic Output voltage Push-Pull
        Output channels A, B
        Sensor Hall
        Short circuit protection Yes
        Reverse polarity protection of power supply Yes
        CE requirements according to EN61000-6-1, EN61000-6-3, EN61000-4-8
