  3. SERIE M100

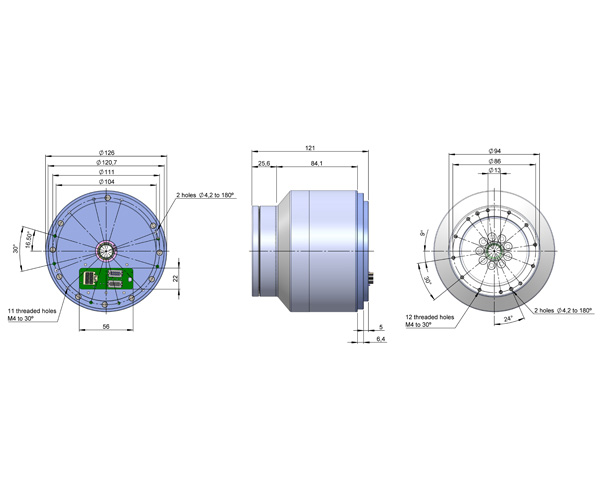

  • Plano Serie M100

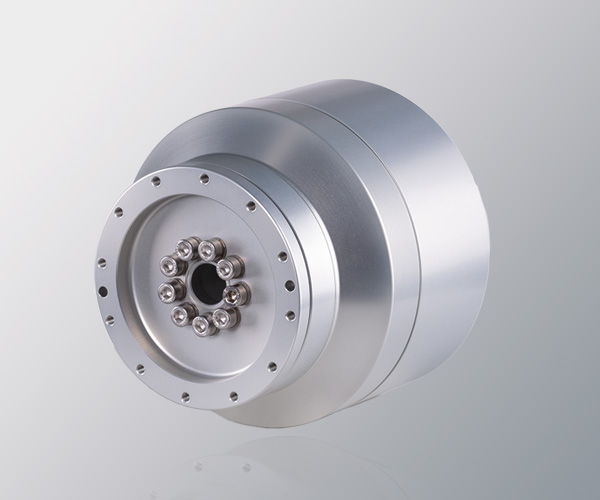

BRUSHLESS HOLLOW SHAFT DC MOTOR

  • Harmonic gearbox
  • Brushless motor
  • High accuracy
  • High reliability
  • Starting torque 35 Nm
  • Speed range 0.00125 rpm (0,08°/s) to 6 rpm (40°/s)
  • Excellent regulation at low temperatures
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        MECHANICAL SPECIFICATIONS
        Materials Housing: Aluminium
        Shaft: Aluminium
        Hore Bore Diameter 13 mm
        Protection against dust and splashes according to DIN EN 60529 IP40
        Nominal / Peak Power 24 / 48 W
        Nominal / Peak Torque 35 / 70 Nm
        Maximum speed 50° / sec
        Max. Acceleration 100° / sec
        Weight aprox. 2 Kg
        Operating temperature range -0°C to +35°C
        Gear Ratio 897,3:1
        Brake Integrated
        Electronics Control Integrated
        Noise Level <= 70 dB
        ELECTRICAL SPECIFICATIONS
        Interface EtherCAT
        Power Supply 24 V
        Repeat Accuracy 0,05°
        Resolution 19 bits
        Nominal Voltage 24 V
        Nominal Current 1 A
        Motor Max Current 2 A

        Accessories

        Coupling flanges

        Lami-flex

        Alu-flex

        Bellow-flex

        Poly-flex

        Union

        Spring-flex

        Pre-assembled cables

        Pagu-flex

        Oldham-flex

        Cross-flex

        Flexible anti-rotation system

        Connectors

        Coupling bells

        Support angles

        Measuring wheels

        Oldham-flex-clamp

        SKU: M100.00.07.A0 Category:
