  • SERIE E58KM SSI

ABSOLUTE MULTITURN ENCODER WITHOUT BEARINGS

  • Singleturn resolution up to 12 bits
  • Multiturn resolution up to 24 bits
  • Magnetic technology
  • External diameter 58 mm
  • Magnet bore Ø 12 mm
  • Protection class IP67 according to DIN EN 60529
  • Connection by cable (other cable length available)
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

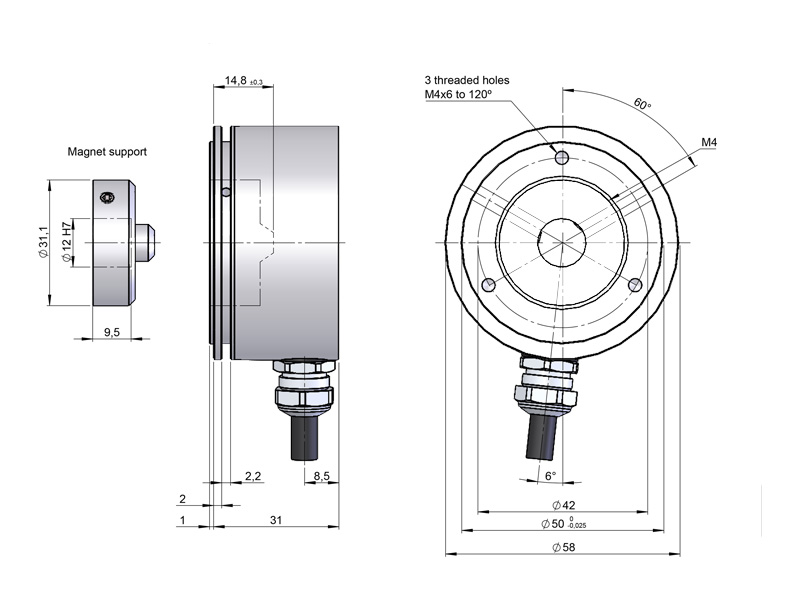

        MECHANICAL SPECIFICATIONS
        Materials Housing: Aluminium
        Cover: Aluminium
        Magnet Support: Aluminium
        Maximum number of revolutions permitted mechanically 12000 rpm
        Maximum number of revolutions permitted electric 6000 rpm
        Magnet bore Ø 12 mm
        Protection against dust and splashes according to DIN EN 60529 IP67
        Gap tolerance ≤ 0,3 mm axial, ≤ 0,01 mm radial
        Weight aprox. < 0,5 Kg
        Operating temperature range -20°C to +85°C
        Vibration according to DIN EN 60068-2-6 100 m/s² (10Hz…2000Hz)
        Shock according to DIN EN 60068-2-27 1000 m/s² (6ms)
        Radial connection 2 meters cable (other cable lengths available or connector mounted at the end of the cable, upon request)
        ELECTRICAL SPECIFICATIONS
        Interface SSI
        Electronic output RS422
        Power supply (VCC) 4,75…30 VDC
        Consumption ≤ 100 mA
        Code Binary or Gray
        Protocol SSI
        Singleturn resolution up to 12 bits
        Multiturn resolution up to 24 bits
        Absolute accuracy ±0,35°
        Relative accuracy ±1,5 LSB
        Max. load capability / channel ±20 mA
        “Low” signal level < 0,8 VDC
        “High” signal level 2 … 5,5 VDC
        Frequency 100 kHz…2 MHz
        Short circuit protection Yes
        Protection polarity inversion Yes
