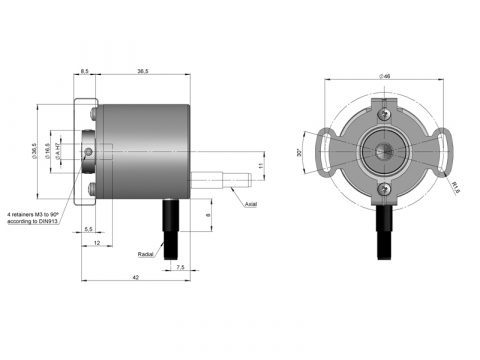

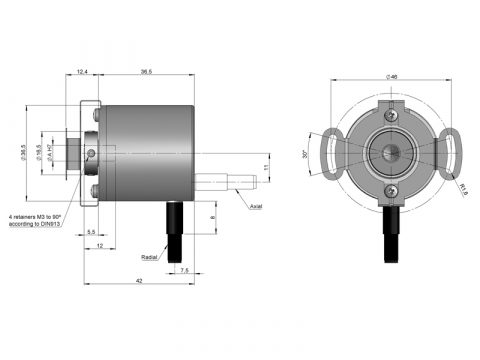

| MECHANICAL SPECIFICATIONS | |
|---|---|
| Materials | Cover: Aluminium Housing: Aluminium Shaft: Stainless Steel |
| Bearings | Ballraces |
| Bearings lifetime | 1×1010 rev. |
| Housing fixing | Flexible flange (included) |
| Permitted misalignment | ±0.3 mm axial, ±0.2 mm radial (90.1037) ±0.2 mm axial, ±0.1 mm radial (90.1111) |
| Shaft fixing | Setscrew |
| Blind hollow shaft diameter | 6 mm or 8 mm |
| Maximum number of revolutions permitted mechanically | 6000 rpm – Standard 10000 rpm – Upon request 12000 rpm (≤ 12 bits) – Upon request |
| Protection against dust and splashes according to DIN EN 60529 | IP64 |
| Rotor inertia moment | 10 gcm2 |
| Starting torque at 20ºC (68ºF) | ≤ 0,01 Nm |
| Maximum load permitted on axial shaft | 20 N |
| Maximum load permitted on radial shaft | 40 N |
| Weight aprox. | 0,08 Kg |
| Operating temperature range | -40°C to +85°C – Standard -40°C to +105°C – Special Customer A01Z |
| Vibration according to DIN EN 60068-2-6 | 100 m/s2 (10Hz…2000Hz) |
| Shock according to DIN EN 60068-2-27 | 1000 m/s2 (6ms) |
| Axial or radial connection | 2 meters cable (other cable lenghts available on order) |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| Interface | SSI |
| Electronic output | RS422 |
| Power supply (VCC) | 4,75…30 VDC |
| Consumption | ≤ 100 mA |
| Code | Binary Gray |
| Protocol | SSI |
| Singleturn resolution | up to 13 bits |
| Multiturn resolution | up to 24 bits |
| Absolute accuracy | ±0,35° |
| Relative accuracy | ±1,5 LSB |
| Max. load capability / channel | ±20 mA |
| “Low” signal level | < 0,8 VDC |
| “High” signal level | 2 … 5,5 VDC |
| Frequency | 50 kHz…2 MHz |
| Short circuit protection | Yes |
| Protection polarity inversion | Yes |
