SERIE E36 CS SSI

3D
  • Encoder Serie 36
  • Encoder Serie 36

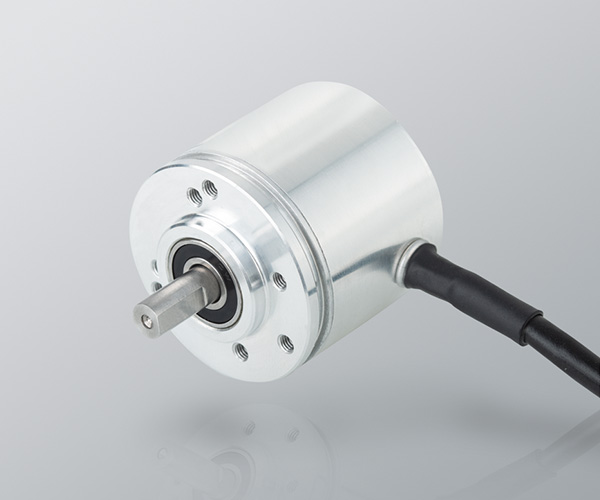

MINIATURE SOLID SHAFT ABSOLUTE SINGLETURN ENCODER

  • Singleturn resolution up to 14 bits
  • Magnetic technology
  • External diameter 36,5 mm
  • Shaft Ø 6 mm
  • Protection class IP64 according to DIN EN 60529
  • Connection by cable (other cable length available)
Ask an expert

Our team of experts will asnwer your technical, product or application questions as soon as possible.

Name*

E-mail*

Phone

Company

Country

Message


I have read and I accept the terms and conditions.*

HOHNER AUTOMATICOS, S.L. informs you that the personal data that you provide by filling out this form will be treated with the purpose of sending you the information requested. The legitimation of the treatment is carried out through the consent of the interested party. Failure to enter your personal data will make it impossible to meet your request. You can exercise your rights of access, rectification, cancellation and deletion of personal data by contacting info@encoderhohner.com or by post to HOHNER AUTOMATICOS, S.L., Prolongació C/Sant Francesc, s/n, 17400 - Breda (Girona) Spain.

Fields with a * are required.

Download Datasheet

Plaease enter your email to download product Datasheet.

E-mail

I have read and I accept the terms and conditions.*

HOHNER AUTOMATICOS, S.L. informs you that the personal data that you provide by filling in this form will be treated with the purpose of sending you the information requested. You can exercise your rights of access, rectification, cancellation and deletion of personal data by contacting info@encoderhohner.com.

Download 3D STEP File

Plaease enter your email to download product 3D File.

E-mail

I have read and I accept the terms and conditions.*

HOHNER AUTOMATICOS, S.L. informs you that the personal data that you provide by filling in this form will be treated with the purpose of sending you the information requested. You can exercise your rights of access, rectification, cancellation and deletion of personal data by contacting info@encoderhohner.com.

If you need 3D step-file of your reference contact us and you will receive it within one working day.

Name*

E-mail*

Phone

Company

Country

Message


I have read and I accept the terms and conditions.*

HOHNER AUTOMATICOS, S.L. informs you that the personal data that you provide by filling out this form will be treated with the purpose of sending you the information requested. The legitimation of the treatment is carried out through the consent of the interested party. Failure to enter your personal data will make it impossible to meet your request. You can exercise your rights of access, rectification, cancellation and deletion of personal data by contacting info@encoderhohner.com or by post to HOHNER AUTOMATICOS, S.L., Prolongació C/Sant Francesc, s/n, 17400 - Breda (Girona) Spain.

Fields with a * are required.

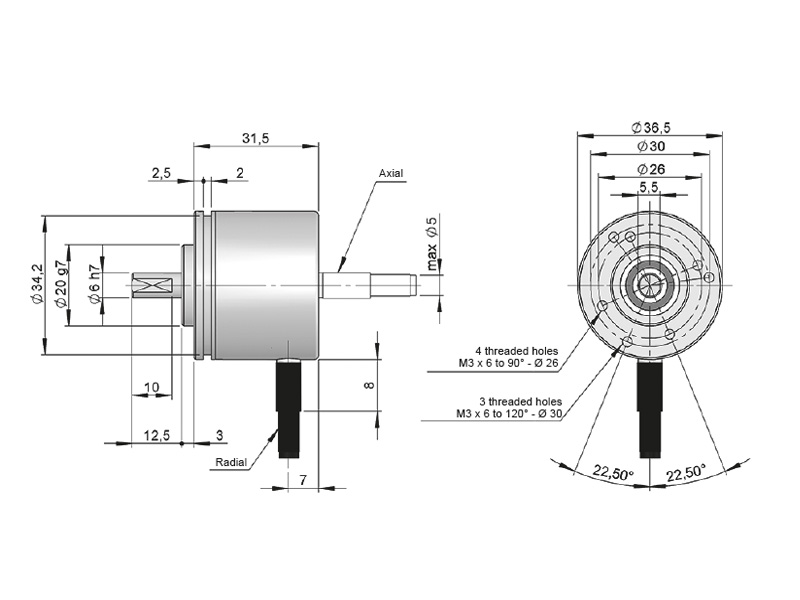

MECHANICAL SPECIFICATIONS
Materials Cover: Aluminium
Housing: Aluminium
Shaft: Stainless Steel
Bearings Ballraces
Bearings lifetime 1×1010 rev.
Maximum number of revolutions permitted mechanically 6000 rpm – Standard
10000 rpm – Upon request
12000 rpm (≤ 12 bits) – Upon request
Protection against dust and splashes according to DIN EN 60529 IP 64
Rotor inertia moment 2 gcm2
Starting torque at 20ºC (68ºF) ≤ 0,01 Nm
Maximum load permitted on axial shaft 20 N
Maximum load permitted on radial shaft 40 N
Weight aprox. 0,08 Kg
Operating temperature range -40°C to +105°C
Vibration according to DIN EN 60068-2-6 100 m/s2 (10Hz…2000Hz)
Shock according to DIN EN 60068-2-27 1000 m/s2 (6ms)
Radial connection 2 meters cable (other cable lenghts available on order)
ELECTRICAL SPECIFICATIONS
Interface SSI
Electronic output RS485
Power supply (VCC) 4,5…30 VDC
Consumption ≤ 100 mA
Code Binary
Gray
Protocol SSI
Singleturn resolution up to 14 bits
Absolute accuracy ±0,35°
Relative accuracy ±1,5 LSB
Max. load capability / channel ±20 mA
“Low” signal level < 0,8 VDC
“High” signal level 2 … 5,5 VDC
Frequency 50 kHz…2 MHz
Short circuit protection Yes
Protection polarity inversion Yes



SKU: E36CS-SSI-1231-1212 Categories: , ,
