SERIE E24 HS ANA

  • E24HS Analog

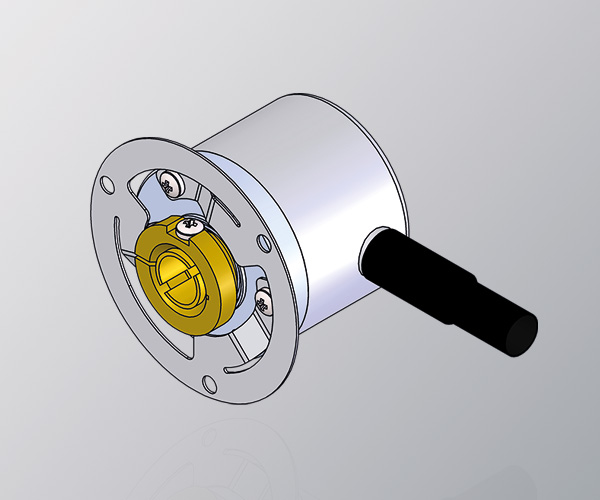

MINIATURE BLIND HOLLOW SHAFT ABSOLUTE SINGLETURN ENCODER

  • Analog output
  • Resolution up to 12 bits
  • External diameter 24 mm
  • Blind hollow shaft Ø 6 mm
  • Protection class IP64 according to DIN EN 60529
  • Anti-rotation system through flexible flange
  • Connection by cable (other cable length available)
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

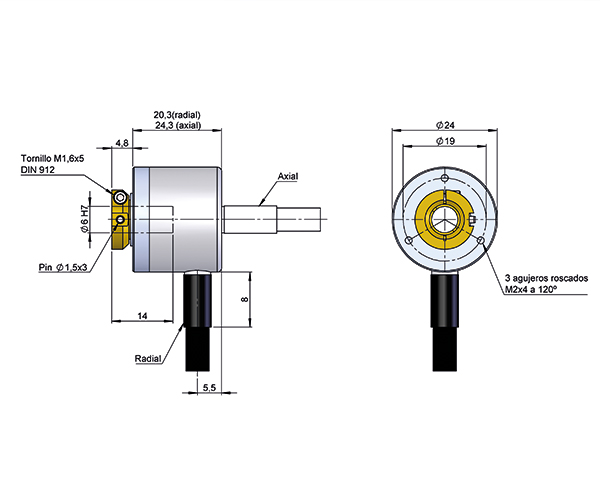

        MECHANICAL SPECIFICATIONS
        Materials Cover: Aluminium
        Housing: Aluminium
        Shaft: Brass
        Bearings Ballraces
        Bearings lifetime 1×1010 rev.

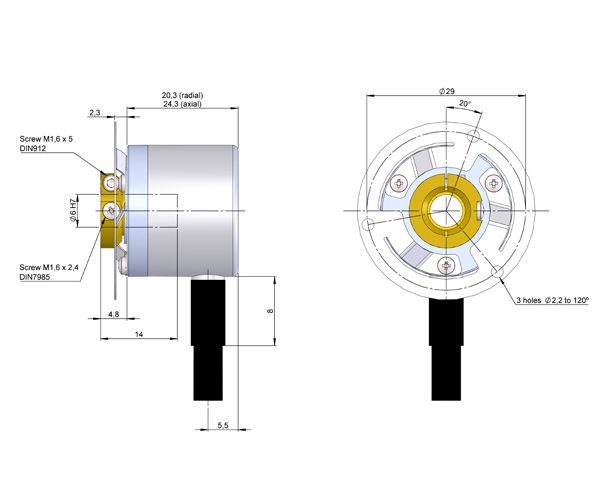

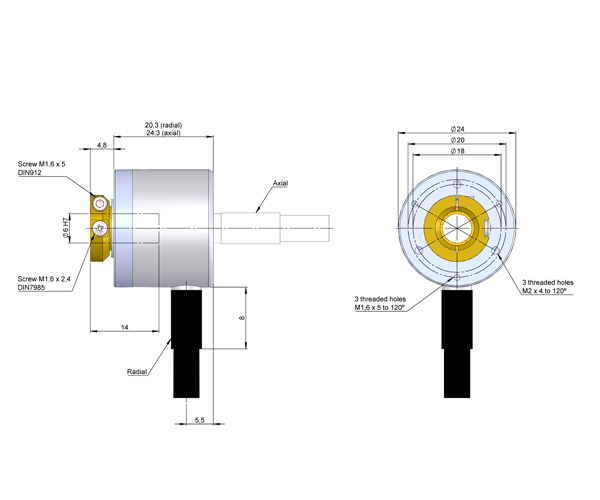

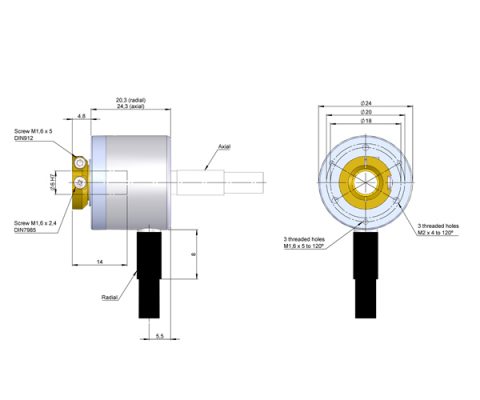

        Housing fixing Flexible flange (included)
        Permitted misalignment ± 0.1 mm axial, ±0.1 mm radial
        Shaft fixing Clamp
        Blind hollow shaft diameter 6 mm
        Maximum number of revolutions permitted mechanically 6000 rpm
        Protection against dust and splashes according to DIN EN 60529 IP64
        Rotor inertia moment 2 gcm2
        Starting torque at 20ºC (68ºF) ≤ 0,01 Nm
        Maximum load permitted on axial shaft 10 N
        Maximum load permitted on radial shaft 10 N
        Weight aprox. 0,06 Kg
        Operating temperature range -40°C to +85°C
        Vibration according to DIN EN 60068-2-6 100 m/s2 (10Hz…2000Hz)
        Shock according to DIN EN 60068-2-27 1000 m/s2 (6ms)
        Axial or radial connection 2 meters cable (other cable lengths available or connector mounted at the end of the cable, upon request)
        ELECTRICAL SPECIFICATIONS
        Interface Analog
        Electronic output 0..20mA , 4..20mA, 0..5V, 0..10V
        Power supply (VCC) 12-18V, 20-28V, 15-30V
        Consumption ≤ 30 mA
        Resolution Up to 12 bits
        Range 180° and 360° electrical (*)
        Short circuit protection Yes
        Protection polarity inversion Yes

        (*) Measuring range can be factory configured from 18° to 360°.

        SKU: E24HS-ANA-11226-12180 Categories: , , ,
