SERIE CS10 Profinet

3D

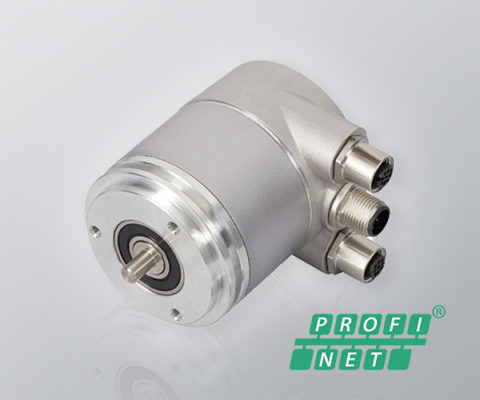

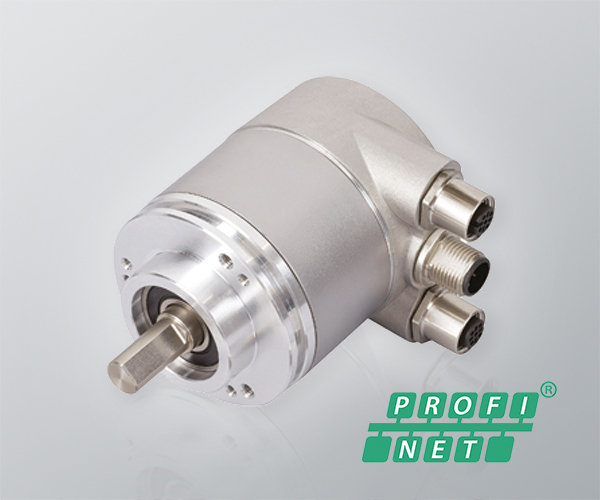

SINGLETURN ABSOLUTE SOLID SHAFT ENCODER

  • Profinet
  • Resolution up to 16 bits
  • External diameter 58 mm
  • Solid shaft Ø 6, 10 or 12 mm
  • Protection class IP67 according to DIN EN 60529
  • Connection by industrial connector 3 x M12

Profibus Certified

Download Profinet configuration software:

Profinet - Windows



Profinet User Manual - PDF

Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message


    I have read and I accept the terms and conditions.*

    HOHNER AUTOMATION, S.L. informs you that the personal data that you provide by filling out this form will be treated with the purpose of sending you the information requested. The legitimation of the treatment is carried out through the consent of the interested party. Failure to enter your personal data will make it impossible to meet your request. You can exercise your rights of access, rectification, cancellation and deletion of personal data by contacting info@encoderhohner.com or by post to HOHNER AUTOMATION, S.L., P.I. Cal Batlle - C/ Dolors Bassa, 3, 17400 - Breda (Girona) Spain.

    Fields with a * are required.

    Download Datasheet / Manual

      Plaease enter your email to download product Datasheet.

      E-mail

      I have read and I accept the terms and conditions.*

      HOHNER AUTOMATION, S.L. informs you that the personal data that you provide by filling in this form will be treated with the purpose of sending you the information requested. You can exercise your rights of access, rectification, cancellation and deletion of personal data by contacting info@encoderhohner.com.

      Download 3D STEP File

        Plaease enter your email to download product 3D File.

        E-mail

        I have read and I accept the terms and conditions.*

        HOHNER AUTOMATION, S.L. informs you that the personal data that you provide by filling in this form will be treated with the purpose of sending you the information requested. You can exercise your rights of access, rectification, cancellation and deletion of personal data by contacting info@encoderhohner.com.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          Sign me up to Hohner Newsletter!
          I have read and I accept the terms and conditions.*

          HOHNER AUTOMATION, S.L. informs you that the personal data that you provide by filling out this form will be treated with the purpose of sending you the information requested. The legitimation of the treatment is carried out through the consent of the interested party. Failure to enter your personal data will make it impossible to meet your request. You can exercise your rights of access, rectification, cancellation and deletion of personal data by contacting info@encoderhohner.com or by post to HOHNER AUTOMATION, S.L., P.I. Cal Batlle - C/ Dolors Bassa, 3, 17400 - Breda (Girona) Spain.

          Fields with a * are required.

          MECHANICAL SPECIFICATIONS
          Materials Housing: Steel
          Flange: Aluminium
          Shaft: Stainless steel
          Bearings Ballraces
          Bearings lifetime 55×10⁸ rev. (Clamping) [40 N / 110 N]
          150×10⁸ rev. (Clamping) [40 N / 60 N]
          85×10⁸ rev. (Synchro) [40 N / 110 N]
          195×10⁸ rev. (Synchro) [40 N / 60 N]
          Shaft diameter 6, 10 or 12 mm
          Maximum number of revolutions permitted mechanically ≤ 12000 rpm
          Protection according to DIN EN 60529 IP65, IP67
          Rotor inertia moment ≤ 30 gcm²
          Starting torque at 20°C (68°F) ≤ 0,03 Nm
          Maximum load permitted on axial shaft 40 N
          Maximum load permitted on radial shaft 110 N
          Weight aprox. 350 g (radial connection)
          415 g (axial connection)
          Operating temperature range -40°C to +85°C (radial connection)
          -40°C to +70°C (axial connection)
          Storage temperature range -40° to +85° C
          Humidity 98% RH, no condensation
          Vibration according to DIN EN 60068-2-6 100 m/s² (10Hz…1000Hz)
          Shock according to DIN EN 60068-2-27 1000 m/s² (6ms)
          Connection 3 x M12 Connector
          Mating connectors not included
          ELECTRICAL SPECIFICATIONS
          Interface ProfiNet
          Output Driver Ethernet
          Power supply 10…30 VDC
          Consumption ≤ 230 mA (10 VDC)
          ≤ 100 mA (24 VDC)
          Power Consumption ≤ 2.5 W
          Start-Up Time < 250 ms
          Singleturn resolution 13 bits – 16 bits
          Accuracy (INL) ±0.0878° (Magnetic)
          ±0.0439° (Optical)
          Code Binary
          Short circuit protection Yes
          Protection polarity inversion Yes
          EMC: Emitted Interference DIN EN 61000-6-4
          EMC: Noise Immunity DIN EN 61000-6-2
          MTTF 65 years
