SERIE CMP10 Analog

CONFIGURABLE ABSOLUT MULTITURN ENCODER SOLID SHAFT

  • Resolution up to 12 bits
  • Configurable range by switch up to 4096 turns
  • Protection class IP65 according to DIN 40050
  • External diameter 58 mm
  • Blind hollow shaft

Product no longer available. Please contact us for more information

Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

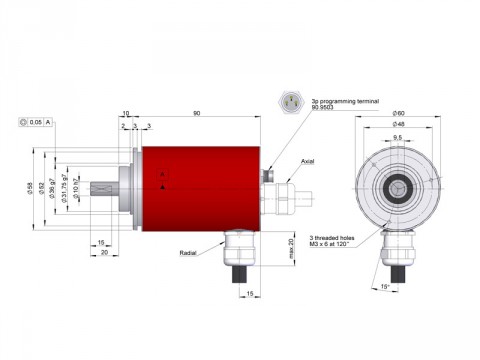

        MECHANICAL SPECIFICATIONS

        Diameter 58mm
        Housing Aluminium/Stainless steel
        Shaft Stainless steel
        Bearings Ballraces
        Bearings lifetime 1×1010rev
        Maximum number of revolutions permitted mechanically 6000 rpm
        Protection against dust and splashes according to DIN 40050 IP65 / IP67
        Rotor inertia moment 30 gcm2
        Starting torque at 20ºC (68ºF) Max. 2,0 Ncm
        Maximum load permitted on axial shaft 40 N
        Maximum load permitted on radial shaft 60 N
        Misalignment permitted axial (blind hollow shaft) ±0.5 mm
        Misalignment permitted radial (blind hollow shaft) ±0.3 mm
        Weight aprox 400 g ST, 500 g MT
        Operating temperature range -10ºC to +70ºC
        Vibration 100 m/s2 (10Hz…2000Hz)
        Shock 1000 m/s2 (6ms)
        Consumption max 100 mA (CS/HS), 150 mA (CM/HM)
        Power supply 10..30Vdc
        Interface Analogue
        Electrical output 0..20mA, 0..10v, 4..20mA
        Configurable parameters (programmable series) Range
        Configurable parameters Direction
        Resolution 10 or 12 bits
        Maximum range 4096 turns
        Radial and axial connection 2 metres cable or industrial connector
