INCREMENTAL ENCODER FOR INDUSTRIAL APPLICATIONS

  • Resolution up to 1.024 pulses per turn
  • External diameter 58 mm

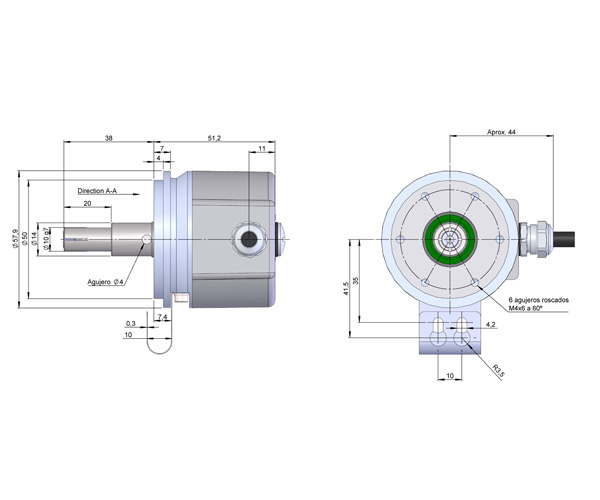

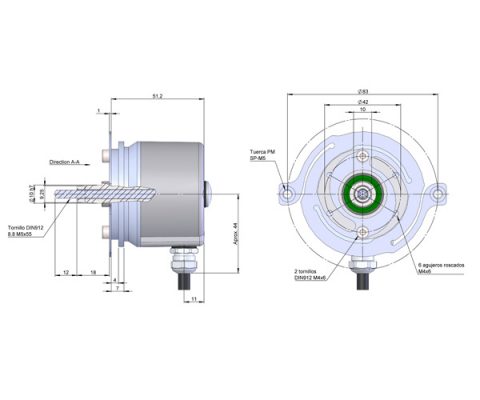

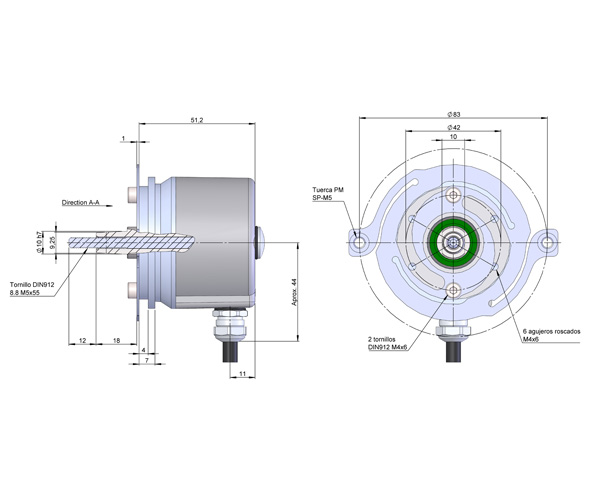

  • Solid shaft Ø 10 expandable / Conic shaft 1:10
  • Protection class IP66 according to DIN EN 60529

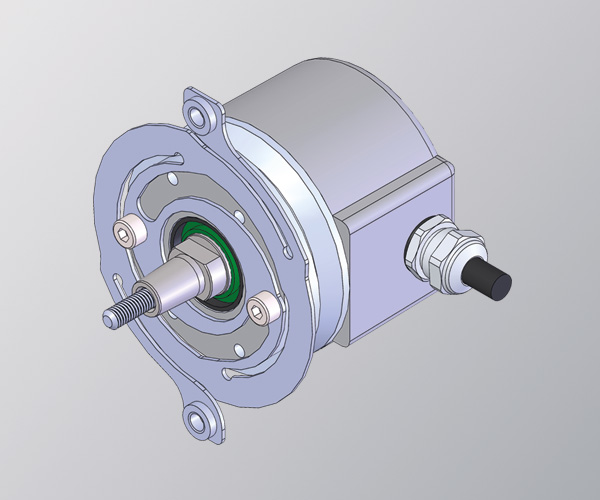

  • Anti-rotation system through flexible flange
  • Connection by cable (other cable length available)
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        MECHANICAL SPECIFICATIONS
        Materials Housing: Aluminium
        Flange: Aluminium
        Shaft: Stainless Steel
        Bearings Ballraces
        Bearings lifetime 1×1010 rev.
        Housing fixing Flexible flange 90.1129 (assembled)
        Flexible flange 90.1124 (assembled)
        Permitted misalignment ±0.4 mm axial, ±0.2 mm radial (90.1129)
        ±0.5 mm axial, ±0.1 mm radial (90.1124)
        Maximum number of revolutions permitted mechanically 6000 rpm
        Protection against dust and splashes according to DIN EN 60529 IP66
        Rotor inertia moment 40 gcm2 (shaft 1)
        30 gcm2 (shaft 2)
        Starting torque at 20ºC (68ºF) ≤ 0,02 Nm
        Maximum load permitted on axial shaft 30 N
        Maximum load permitted on radial shaft 40 N
        Weight aprox. 0,25 Kg
        Operating temperature range -20°C to +80°C
        Vibration according to DIN EN 60068-2-6 100 m/s2 (10Hz…2000Hz) (6ms)
        Shock according to DIN EN 60068-2-27 1000 m/s2 (6ms)
        Maximum pulses per turn 1024
        Radial connection 2 meters cable (other cable lengths available on order)
        OUTPUT SIGNALS
        OUTPUT CIRCUIT RS422 (TTL compatible) Push-Pull Differential
        Power supply 11…30 VDC 5…30 VDC
        Output voltage 5 VDC 5…30 VDC
        Consumption Tipical: 80 mA
        Max: 160 mA        		 Tipical: 70 mA
        Max: 150 mA
        Max. load capability / channel ±20 mA ±30 mA
        Lenght of cable allowed 1200 m 100 m
        “Low” signal level VOL < 0.5 VDC VOL < 2.5 VDC
        “High” signal level VOH > 2.5 VDC VOH > VCC – 3 VDC
        Frequency 300 kHz 300 kHz
        Short circuit protection Yes Yes
        Protection polarity inversion Yes Yes
        Channel B leads (90° electric) channel A, view from the shaft, shaft rotating clockwise
