SERIE 100/DUO

3D
  • Serie 100
  • Serie 100/DUO

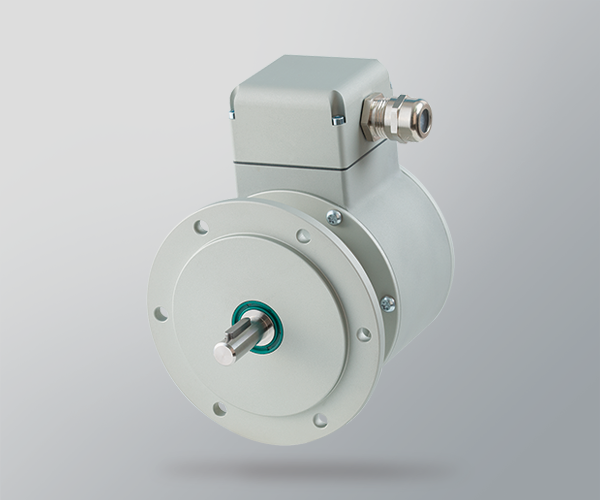

INCREMENTAL ENCODER FOR HEAVY DUTY INDUSTRIAL APPLICATIONS

  • Resolution up to 5.000 pulses per turn
  • External diameter 100 mm
  • Shaft Ø 11 mm
  • Integrated bearing insulation of up to 2,5 kV
  • Protection class IP66 according to DIN EN 60529
  • Connection by terminal box with plug-in spring terminal connectors, rotatable through 360°
  • Dual output available
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

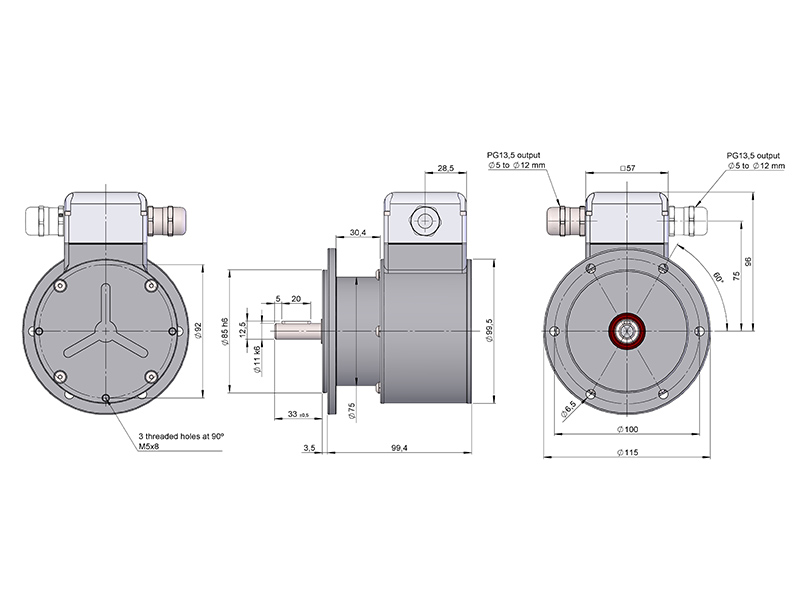

          CARACTERÍSTICAS MECÁNICAS
          Materials Housing: Anodized aluminium
          Shaft: Stainless Steel
          Bearings Dual set of hybrid bearings with ceramic balls
          Bearings lifetime 1×1010 rev.
          Flange Euro flange B10
          Shaft diameter 11 mm
          Shaft insulation 2,5 kV
          Maximum number of revolutions permitted mechanically 6000 rpm
          Protection against dust and splashes according to DIN EN 60529 IP66
          Rotor inertia moment ≈ 250 gcm2
          Starting torque at 20°C (68°F) ≤ 0,06 Nm
          Maximum load permitted on axial shaft ≤ 350 N
          Maximum load permitted on radial shaft ≤ 450 N
          Weight aprox. 1,8 Kg
          Operating temperature range -20°C a +80°C – Standard
          -40°C a +80°C – Standard Customer YT00
          -20°C a +100°C – Special Customer YT01
          Vibration according to DIN EN 60068-2-6 300 m/s2 (10Hz…2000Hz)
          Shock according to DIN EN 60068-2-27 2500 m/s2 (6ms)
          Maximum pulses per turn 5.000
          Radial connection Terminal box, cable or M12/M23 connector
