MSA

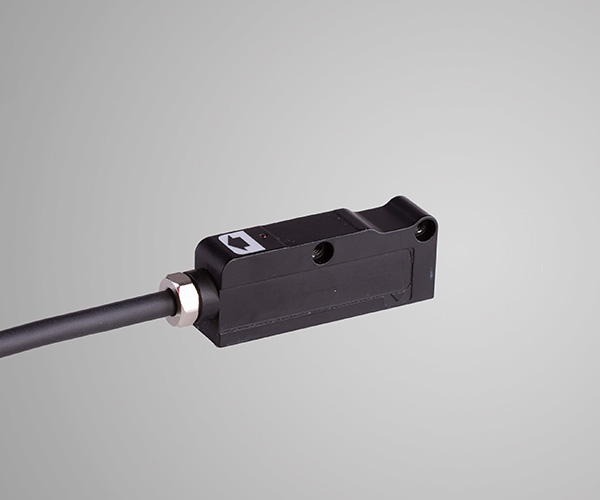

ABSOLUTE LINEAR MEASURING MAGNETIC SENSOR

  • Linear magnetic sensor, with direct reading of the absolute position
  • Magnetic detection without contact
  • High speed serial interface
  • Easy assembly; Wide alignment tolerances
  • Resolution 10 μm
  • Accuracy ±15 μm
  • Pole pitch 2+2
  • Protection class IP67
  • Warning indication through LED
  • Connection by cable (other cable lenght available)
Buy Online
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

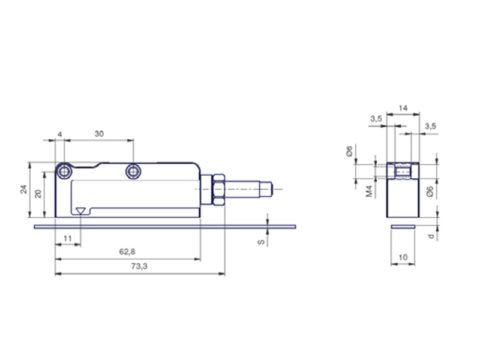

        SENSOR SPECIFICATIONS
        Absolute resolution 10 μm
        Accuracy ±15 μm
        Repeatability ±1 increment
        Signal period 2 mm
        GAP, distance sensor/band (d).See previous table) 0,3 to 1 mm
        Measuring lenght up to 30 m
        Max. traversing speed 300 m/min
        Protection class (EN 60529) IP67
        Operating temperature range 0°C to +50°C
        Storage temperature range -20°C to 70°C
        Humidity 100% not condensed
        Vibration (EN 60068-2-6) 200 m/s2 (55…2000 Hz)
        Weight 80 g
        Axial connection 2 meter cable (other cable lenght or radial output available, upon request)
        BAND SPECIFICATIONS
        Pole pitch Incremental track 2+2 mm + absolute track
        Accuracy at 20°C ±20 μm/m (high accuracy)
        Width band 10 mm
        Thickness band 1,3 mm
        Maximum length 30 m
        Thermal expansion 10,5 x 10¯⁶ °C¯¹ T ref = 20°C ± 0,1°C
        Operating temperature range -20°C to +70°C
        Storage temperature range -20°C to +80°C

        IMPORTANT: In order not to compromise the accuracy of the system, the magnetic band must be longer than the machine run of at least 2 cm from front side and 8 cm for back side.
