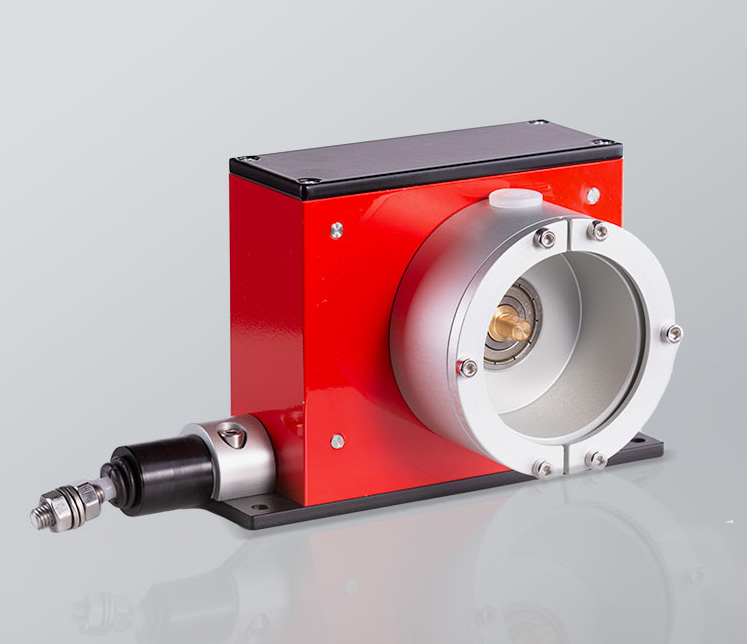

ENCO-METER EM4

EXTENDIBLE CABLE MEASUREMENT SYSTEM

  • Measuring linear distances up to 4 meters
  • Any mounting position possible
  • Protection class IP51 according to DIN EN 60529
  • The drum shaft can drive any kind of rotary encoder (encoder, potentiometer, …)
  • Stainless steel extendible cable Ø 0,61 AISI316
Ask an expert

Our team of experts will asnwer your technical, product or application questions as soon as possible.

Name*

E-mail*

Phone

Company

Country

Message


I have read and I accept the terms and conditions.*

HOHNER AUTOMATICOS, S.L. informs you that the personal data that you provide by filling out this form will be treated with the purpose of sending you the information requested. The legitimation of the treatment is carried out through the consent of the interested party. Failure to enter your personal data will make it impossible to meet your request. You can exercise your rights of access, rectification, cancellation and deletion of personal data by contacting info@encoderhohner.com or by post to HOHNER AUTOMATICOS, S.L., Prolongació C/Sant Francesc, s/n, 17400 - Breda (Girona) Spain.

Fields with a * are required.

Download Datasheet

Plaease enter your email to download product Datasheet.

E-mail

I have read and I accept the terms and conditions.*

HOHNER AUTOMATICOS, S.L. informs you that the personal data that you provide by filling in this form will be treated with the purpose of sending you the information requested. You can exercise your rights of access, rectification, cancellation and deletion of personal data by contacting info@encoderhohner.com.

If you need 3D step-file of your reference contact us and you will receive it within one working day.

Name*

E-mail*

Phone

Company

Country

Message


I have read and I accept the terms and conditions.*

HOHNER AUTOMATICOS, S.L. informs you that the personal data that you provide by filling out this form will be treated with the purpose of sending you the information requested. The legitimation of the treatment is carried out through the consent of the interested party. Failure to enter your personal data will make it impossible to meet your request. You can exercise your rights of access, rectification, cancellation and deletion of personal data by contacting info@encoderhohner.com or by post to HOHNER AUTOMATICOS, S.L., Prolongació C/Sant Francesc, s/n, 17400 - Breda (Girona) Spain.

Fields with a * are required.

TECHNICAL SPECIFICATIONS

Travel 200 mm ±0,06 / per turn
Cable* Ø 0,61 stainless steel AISI316
(structure 19 x 7 + 0)
Measurement range, up to (mm) 4000
Maximum cable extension (mm) 4010
Minimum cable static tension 3 N – Standard
6 N – Special customer AV
Maximum cable static tension 8,9 N – Standard
18 N – Special customer AV
Maximum extension acceleration 35 m/s2 – Standard
30 m/s2 – Special customer AV
Maximum recovery accelaration 10 m/s2 – Standard
20 m/s2 – Special customer AV
Maximum speed 1 m/s
Protection against dust and splashes according to DIN EN 60529 IP51

(*) Other types of cables are possible on special order
