SERIE 67 Sin/Cos

  1. Home
  2. Incremental Encoders
  3. Incremental Solid Shaft
  4. SERIE 67 Sin/Cos
3D

INCREMENTAL ENCODER FOR INDUSTRIAL APPLICATIONS

  • Incremental resolution 1024 SIN/COS per turn
  • External diameter 58 mm

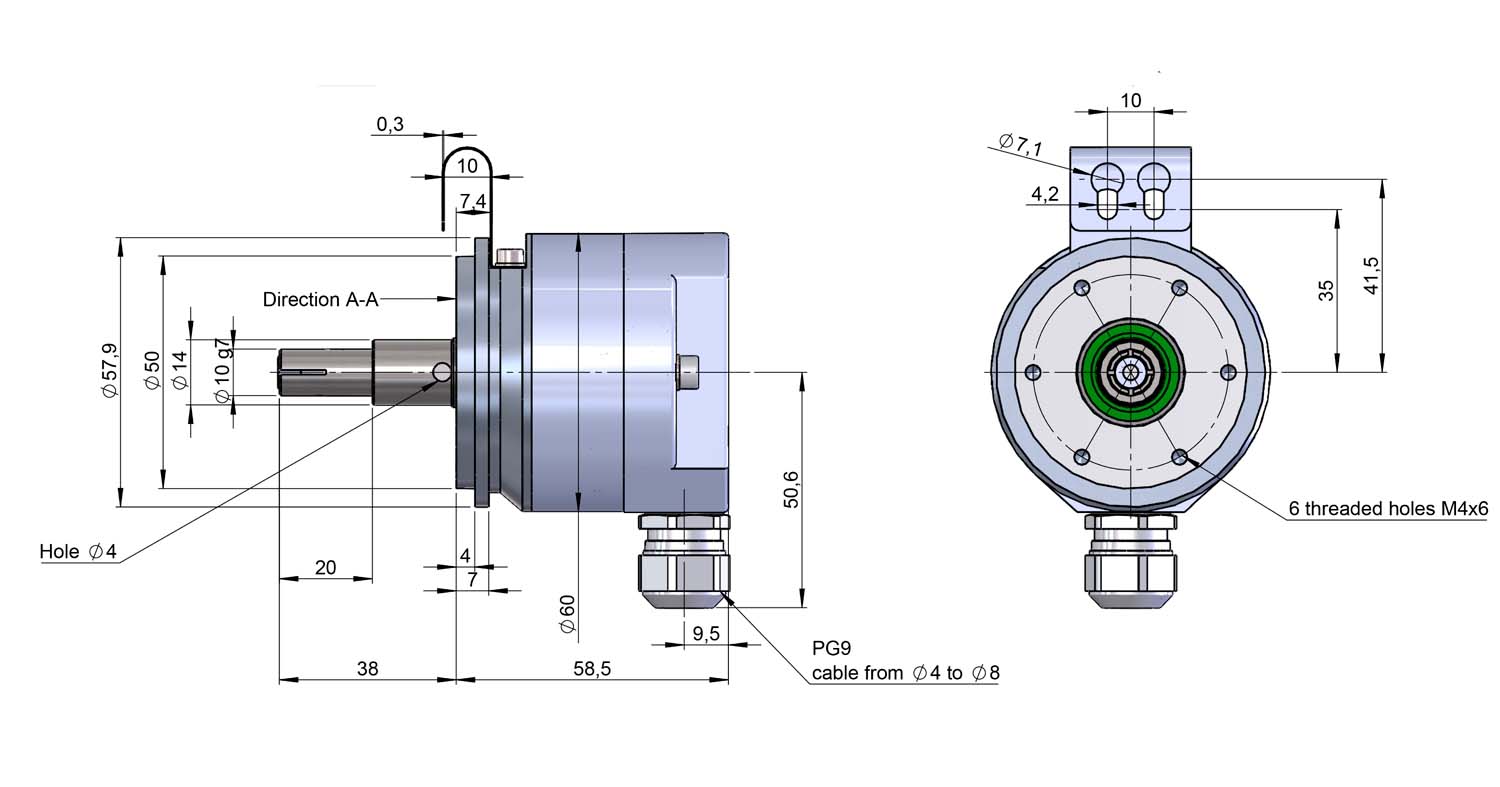

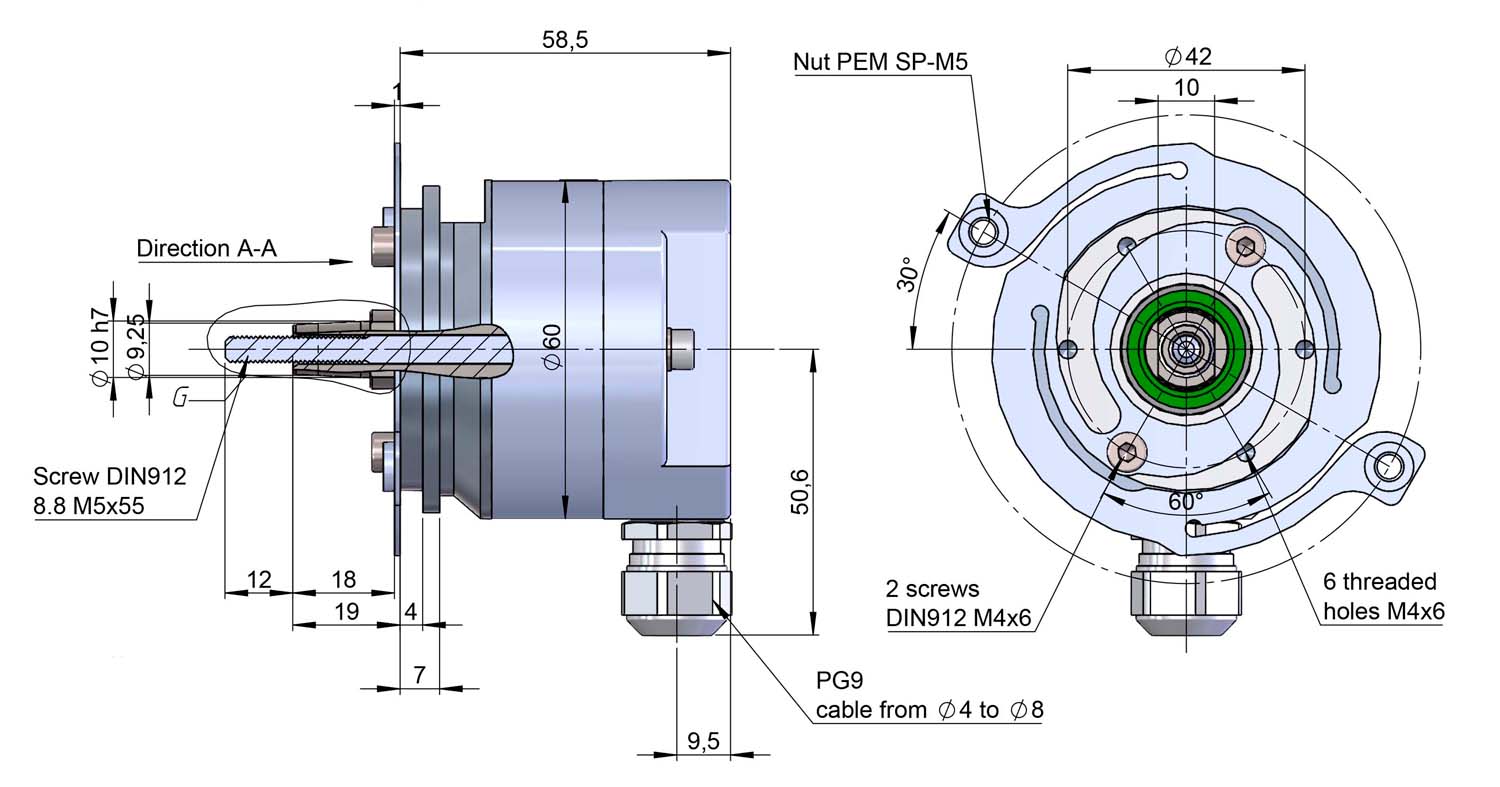

  • Solid shaft Ø 10 expandable / Conic shaft 1:10
  • Protection class IP66 according to DIN EN 60529
  • Anti-rotation system through flexible flange or antiturn stick
  • Connection by cable (other cable lenght available) PG9 / Radial terminal box
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Please enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

          MECHANICAL SPECIFICATIONS
          Materials Cover: Aluminium
          Housing: Aluminium
          Shaft: Stainless Steel
          Bearings Ballraces
          Bearings lifetime 1×1010 rev.
          Housing fixing Flexible flange 90.1129 (assembled)
          Flexible flange 90.1124 (assembled)
          Permitted misalignment ±0.4 mm axial, ±0.2 mm radial (90.1129)
          ±0.5 mm axial, ±0.1 mm radial (90.1124)
          Maximum number of revolutions permitted mechanically 6000 rpm
          Protection against dust and splashes according to DIN EN 60529 IP66
          Rotor inertia moment 40 gcm2 (shaft 1)
          30 gcm2 (shaft 2)
          Starting torque at 20ºC (68ºF) ≤ 0,02 Nm
          Maximum load permitted on axial shaft 30 N
          Maximum load permitted on radial shaft 40 N
          Weight aprox. 0,365 Kg
          Operating temperature range -30°C to +100°C
          Vibration according to DIN EN 60068-2-6 100 m/s2 (10Hz…2000Hz)
          Shock according to DIN EN 60068-2-27 1000 m/s2 (6ms)
          Consumption ≤ 90 mA
          Power supply 5 VDC ±5%
          7…30VDC
          Electronic output SIN/COS, 1 Vpp ±20%
          Incremental resolution 1024 SIN/COS
          Frequency ≤ 200 kHz
          Signal offset 2,5 VDC
          Radial connection Radial terminal box

          Accessories

          Flexible anti-rotation system

          Alu-flex

          Poly-flex

          Cross-flex

          Lami-flex

          Coupling bells

          Pre-assembled cables

          Coupling flanges

          Pagu-flex

          Bellow-flex

          Oldham-flex-clamp

          Connectors

          Support angles

          Measuring wheels

          Union

          Spring-flex

          SKU: 67S-22107-1024, 67S-11119-1024, 67S-12107-1024 Categories: , ,
