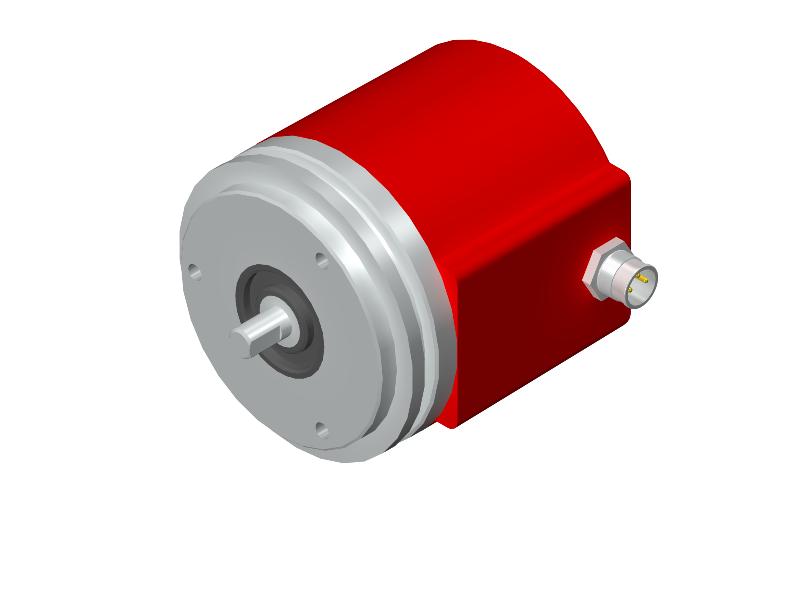

POTENTIOMETER SERIE POT58

SENSORE ANGOLARE ALBERO SALIENTE PER USI INDUSTRIALI

  • Diametro esterno 58 mm
  • Albero di 6 o 10mm
  • Protezione IP65 secondo DIN 40050
  • Rango di misura 360o/3600o/7200o
  • Uscita resisitiva, corrente o tensione
  • Connessione cavo (disponibile qualsiasi longi mdi cavo) o connettore industriale
  • Sistema di ricezione mediante potenziometro di precisione
Chiedere ad un esperto

    Il nostro team di esperti risponderà alle vostre domande nel più breve tempo possibile.

    Nome*

    E-mail*

    Telefono

    Azienda

    Messaggio

    Iscriviti alla nostra newsletter?

    Ho letto ed accettato Condizioni.*

    HOHNER AUTOMATION, S.L. ti informa che i dati personali che fornisci compilando questo modulo saranno trattati allo scopo di inviarti le informazioni richieste. La legittimazione del trattamento viene effettuata attraverso il consenso dell'interessato. Il mancato inserimento dei tuoi dati personali renderà impossibile soddisfare la tua richiesta. È possibile esercitare i diritti di accesso, rettifica, cancellazione e cancellazione dei dati personali contattando info@encoderhohner.com o per posta a HOHNER AUTOMATION, S.L., P.I. Cal Batlle - C/ Dolors Bassa, 3, 17400 - Breda (Girona) Spagna.n.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        MECHANICAL SPECIFICATIONS
        Materials Cover: Zamak
        Housing: Aluminium
        Shaft: Stainless Steel
        Bearings Ballraces
        Bearings lifetime 1×1010 rev.
        Maximum number of revolutions permitted mechanically 50 rpm (180°, 1800°)
        100 rpm (360°, 3600°)
        200 rpm (7200°)
        Protection against dust and splashes according to DIN 60529 IP65
        Starting torque at 20ºC (68ºF) ≤ 0,02 Nm
        Maximum load permitted on axial shaft 40 N
        Maximum load permitted on radial shaft 60 N
        Output Potentiometer, Analog output
        Weight aprox 400 g
        Operating temperature range -20ºC to +85ºC
        Direction Clockwise (CW)
        Axial or radial connection 2 meters cable or industrial connector M8 (other cable lengths available on order)
        Female connector not included
        ELECTRICAL SPECIFICATIONS
        Reference code 1 kΩ or 10 kΩ
        1 turn

        1 or 2
        1 kΩ or 10 kΩ
        10 turns

        1 or 2
        0..10v
        3
        4..20mA
        4
        Voltage supply 30 VDC max 30 VDC max 15…30 VDC 15…30 VDC
        Accuracy ± 15% ± 5% ± 0,3% ± 0,3%
        Linearity ± 2% ± 0,25% ± 0,5% ± 0,5%
        Thermal coefficient ± 50ppm/C° ± 50ppm/C° ± 50ppm/C° ± 50ppm/C°
        Load 1w max 2w max 5 kΩ min 600 kΩ max
