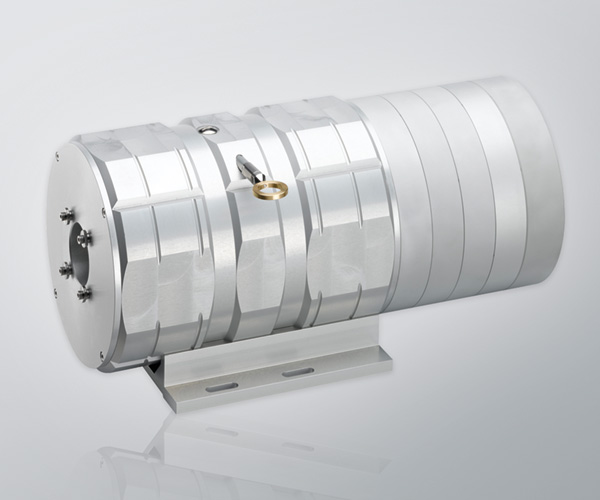

SERIE XT18

ROBUST DRAW WIRE SYSTEM FOR HEAVY DUTY INDUSTRIAL APPLICATIONS

  • Measuring linear distances up to 50 meters
  • Any mounting position possible
  • High speed up to 10 m/s
  • The drum shaft can drive any kind of rotary encoder or potentiometer
  • Stainless steel measuring cable Ø 0,90 mm
  • Different wire types and wire attachment options
专家答疑

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        TECHNICAL SPECIFICATIONS
        Materials Housing: Aluminium
        Flange: Aluminium
        Measuring cable*: Ø 0,90 mm Stainless Steel
        Travel 500 mm / per turn
        Measurement range, up to (mm) 50000
        Minimum cable static tension 15 N
        Maximum cable static tension 30 N
        Max. Speed 2 m/s² (90.XT1820, 90.XT1830)
        1 m/s² (90.XT1840, 90.XT1850)
        Vitesse maximale 10 m/s
        Linearity ±0,05% f.s.
        Weight aprox. 12 Kg (90.XT1820), 15 Kg (90.XT1830)
        20 Kg (90.XT1840), 23 Kg (90.XT1850)
        Operating temperature range – 20°C to +80°C – Standard
        – 30°C to +80°C – Special Customer BK
        Storage temperature range – 30°C to +80°C

        (*) Other types of cables are possible on special order.

        SKU: 90.XT1820 90.XT1830 90.XT1840 90.XT1850 90.XT1820.BK 90.XT1820.BL 90.XT1820.BM 90.XT1820.BN 90.XT1830.BK 90.XT1830.BL 90.XT1830.BM 90.XT1830.BN 90.XT1840.BK 90.XT1840.BL 90.XT1840.BM 90.XT1840.BN 90.XT1850.BK 90.XT1850.BL 90.XT1850.BM 90.XT1850.BN Categories: , ,
