系列 10 IP67 INOX

3D

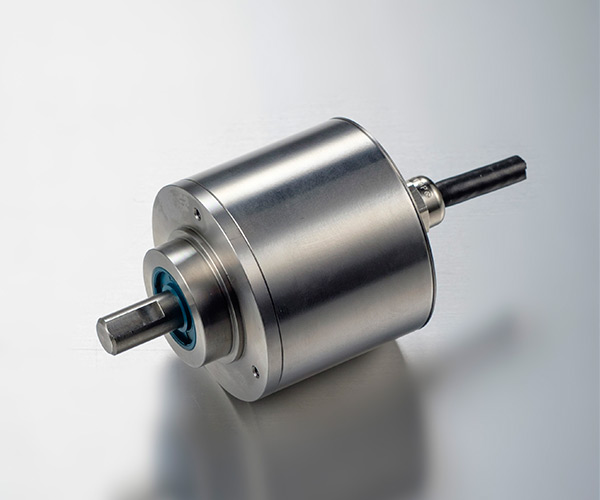

工业应用严峻情形凸出轴增量编码器

  • 每圈脉冲数从1到50,000

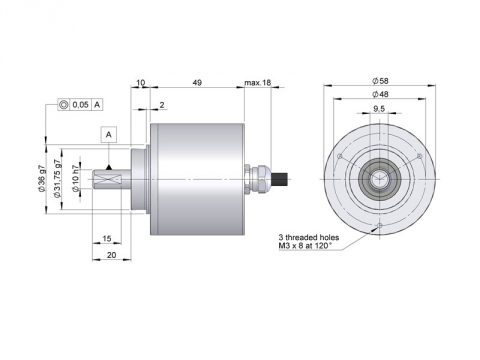

  • 外径58 mm
  • 轴径10 mm
  • 基于DIN EN 60529 IP67保护
  • 根据要求可为机械、电子和光学执行
  • 电缆连接(配有任何长度的电缆或空中连接器)
专家答疑

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

          MECHANICAL SPECIFICATIONS
          Materials Cover: Stainless Steel AISI304
          Housing: Stainless Steel AISI304
          Shaft: Stainless Steel AISI304
          Bearings Ballraces
          Bearings lifetime 1×1010 rev.
          Maximum number of revolutions permitted mechanically 6000 rpm
          Protection against dust and splashes according to DIN EN 60529 IP67
          Rotor inertia moment 30 gcm2
          Starting torque at 20ºC (68ºF) ≤ 0,02 Nm
          Maximum load permitted on axial shaft 40 N
          Maximum load permitted on radial shaft 80 N
          Weight aprox. 0,5 Kg
          Operating temperature range -20ºC to +80ºC – Standard
          -40ºC to +80ºC – Special Customer AT00
          Vibration according to DIN EN 60068-2-6 100 m/s2 (10Hz…2000Hz)
          Shock accoording to DIN EN 60068-2-27 1000 m/s2 (6ms)
          Maximum pulses per turn 50.000
          Axial connection 2 meters cable (other cable lenghts available or connector mounted at the end of the cable, upon request)
