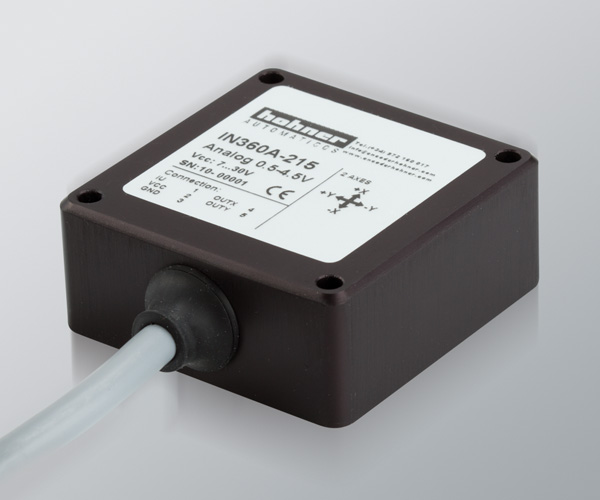

INCLINOMETER IN360A

ANALOG INCLINOMETER

  • Robust metal case protects from shocks and vibrations
  • Filling resin protects against thermal shocks, moisture and harsh environments
  • 1D and 2D inclination measurement
  • Protection class IP67
  • Analog output (4-20 mA or 0.5-4.5V)
  • Protected against reverse bias
Buy Online
专家答疑

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

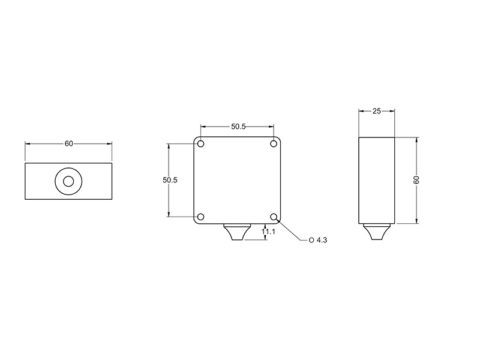

        MECHANICAL SPECIFICATIONS
        Materials Housing: Anodized aluminium
        Protection according to DIN EN 60529 IP67
        Weight 200 g
        Operating temperature range -40°C to +85°C
        Storage temperature range -40°C to +85°C
        Connection 0,5 m open lead cable
        ELECTRICAL SPECIFICATIONS
        Measurement range 0…360° (1 axis)
        ±30° (2 axes)
        Resolution 7.33 μA (4…20 mA)
        1.67 mV (0,5…4,5 V)
        Supply voltage 12/24 V (7…30 V)
        Current consumption (*) 40 mA
        Accuracy ±0.20° (max ±0.50°)
        Temperature drift ±0.008°/°C
        Load resistor 250 Ω; max 500 Ω (4…20 mA)
        10 kΩ (0,5…4,5 V)

        (*) Sensor current consumption is 40mA. At X and Y full scale (20mA+20mA), the total current consumption is 80mA.

        SKU: IN360A-114, IN360A-115, IN360A-214, IN360A-215 Categories: ,
