SERIE SMRS10

  1. Home
  2. Энкодер абсолютный однооборотный
  3. SSI
  4. SERIE SMRS10
3D

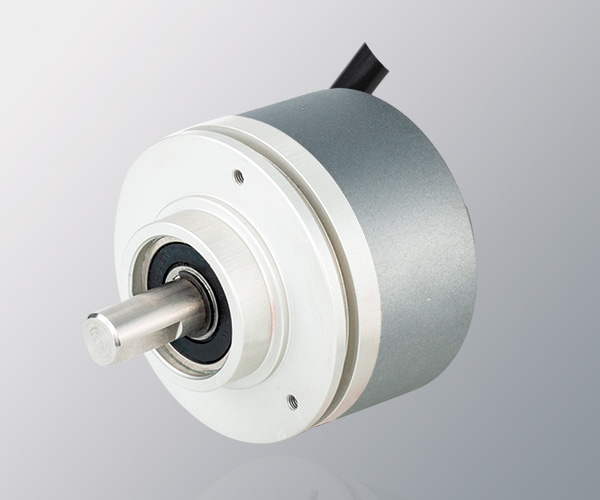

ЭНКОДЕР АБСОЛЮТНЫЙ ОДНООБОРОТНЫЙ
- SSI
- SSI + Sin/Cos
- BiSS-C
- BiSS-C + Sin/Cos

SSI / SSI + SinCos / BiSS-C / BiSS-C + SinCos

  • Разрешение однооборотный до 19 bits
  • Защита IP67 по DIN EN 60529

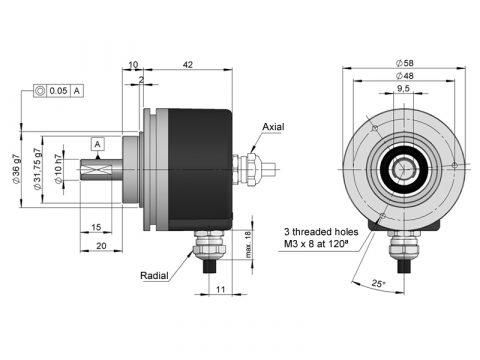

  • Наружный диаметр 58 мм
  • Вал выходящий
  • Соединение аксиальное или радиальное, выходной кабель или промышленный разъем
Спроси эксперта

    Наша команда экспертов будет ответить на ваши вопросы как можно скорее.

    Ваше имя*

    Ваш E-Mail*

    телефон

    компания

    Сообщение

    Подпишитесь на нашу рассылку?

    I have read and I accept the terms and conditions.*

    HOHNER AUTOMATION, S.L. informs you that the personal data that you provide by filling out this form will be treated with the purpose of sending you the information requested. The legitimation of the treatment is carried out through the consent of the interested party. Failure to enter your personal data will make it impossible to meet your request. You can exercise your rights of access, rectification, cancellation and deletion of personal data by contacting info@encoderhohner.com or by post to HOHNER AUTOMATION, S.L., P.I. Cal Batlle - C/ Dolors Bassa, 3, 17400 - Breda (Girona) Spain.

    Fields with a * are required.

      Please enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

          SSI / BiSS INTERFACE
          Interface SSI BiSS
          Electronic output RS485 RS485
          Max. load capability / channel ±20 mA ±20 mA
          Resolution 9…19 bits
          21 bits — Upon request          		 9…19 bits
          21 bits — Upon request
          Code Binary
          Gray          		 Binary
          Clock frequency 50 kHz … 2 MHz 50 kHz … 10 MHz
          Protocol SSI BiSS-C



          INCREMENTAL OUTPUT
          SIN/COS
          Electronic output Differential 1 Vpp
          Signal offset 2,5 VDC
          Resolution 2048 ppr
          Cutoff frequency (-3 db) >500 kHz

          Accessories

          Union

          ГИБКИЕ ПРОТИВОРОТАЦИОННЫЕ СИСТЕМЫ

          Cross-flex

          Pagu-flex

          Spring-flex

          ИЗМЕРИТЕЛЬНЫЕ КОЛЕСА

          СОЕДИНИТЕЛИ

          Bellow-flex

          СОЕДИНИТЕЛЬНЫЕ КОЛОКОЛА

          ВСТРОЕННЫЙ КАБЕЛЬ

          Lami-flex

          УГЛЫ ОПОРЫ

          ФЛАНЦЫ СОЕДИНЕНИЯ

          Poly-flex

          Oldham-flex-clamp

          Alu-flex

          SKU: SMRS10-21121311S-17 Categories: , , , ,
