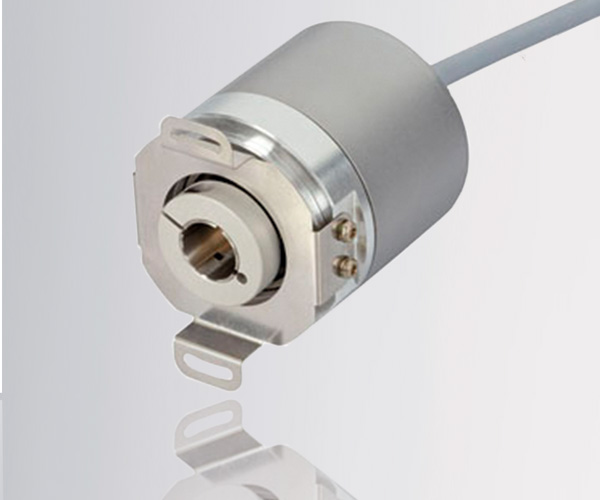

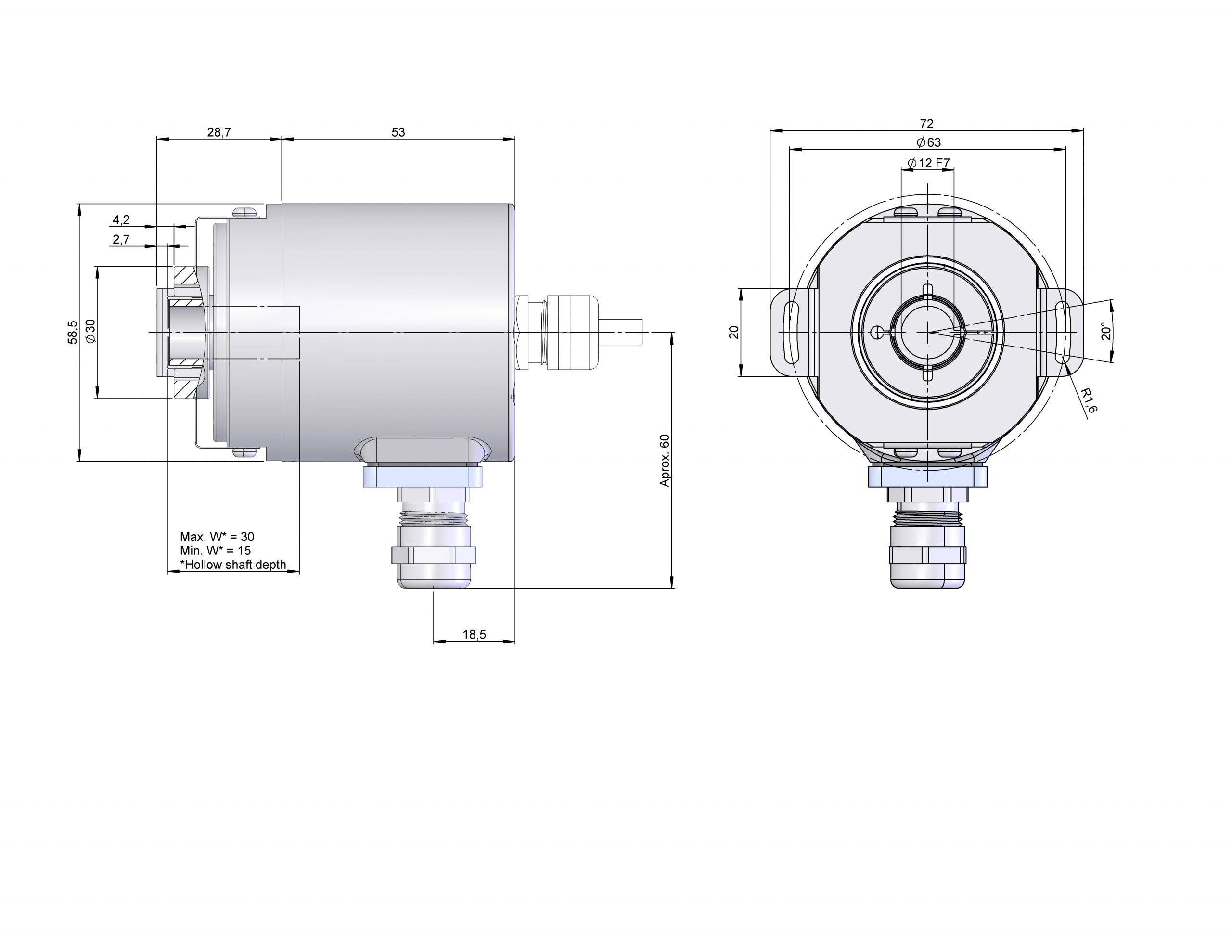

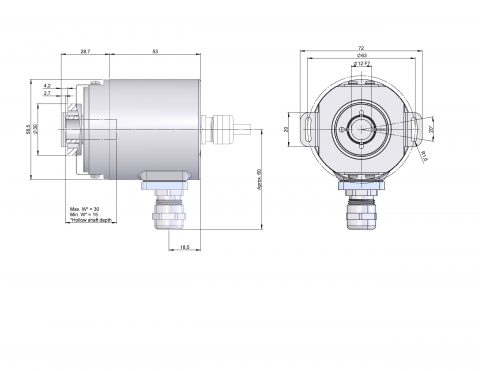

SERIE HM10 PAR Parallel

MULTITURN ABSOLUT ENCODER

  • Parallel
  • Singleturn resolution up to 13 bits
  • Multiturn resolution up to 25 bits
  • External diameter 58,5 mm
  • Blind Hollow Shaft Ø 10 or 12 mm
  • Protection class IP65 according to DIN EN 60529
  • Connection by cable (other cable length available)
