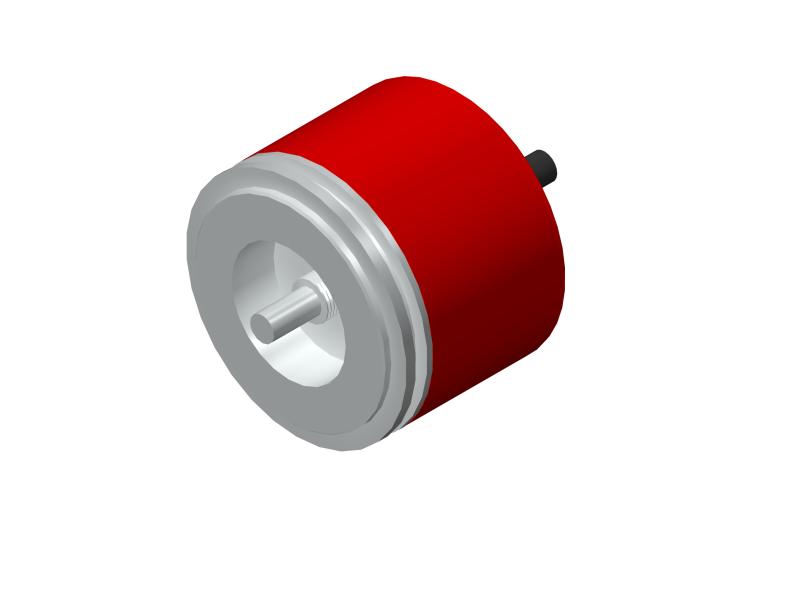

POTENTIOMETER SERIE POT20

  1. Home
  2. Другие датчики
  3. Потенциометр
  4. POTENTIOMETER SERIE POT20

УГЛОВОЙ Датчик с ВЫхОДЯЩиМ ВаЛОМ ДЛЯ прОМЫшЛеннЫх приЛОжениЙ

  • Внешний диаметр 58 мм
  • Вал 6,35мм
  • Диапазон измерений 10 оборотов
  • Резистивный выход 5k или 10k
  • Соединение кабельное (доступна любая длина кабеля) или промышленный разъем
  • Система: прецизионный потенциометр
Спроси эксперта

    Наша команда экспертов будет ответить на ваши вопросы как можно скорее.

    Ваше имя*

    Ваш E-Mail*

    телефон

    компания

    Сообщение

    Подпишитесь на нашу рассылку?

    I have read and I accept the terms and conditions.*

    HOHNER AUTOMATION, S.L. informs you that the personal data that you provide by filling out this form will be treated with the purpose of sending you the information requested. The legitimation of the treatment is carried out through the consent of the interested party. Failure to enter your personal data will make it impossible to meet your request. You can exercise your rights of access, rectification, cancellation and deletion of personal data by contacting info@encoderhohner.com or by post to HOHNER AUTOMATION, S.L., P.I. Cal Batlle - C/ Dolors Bassa, 3, 17400 - Breda (Girona) Spain.

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        MECHANICAL SPECIFICATIONS
        Materials Cover: PA 6.6
        Housing: Aluminium
        Shaft: Nickel plated brass
        Bearings lifetime 1×106 rev.
        Maximum number of revolutions permitted mechanically 100 rpm
        Protection against dust and splashes according to DIN 60529 IP54
        Starting torque at 20ºC (68ºF) ≤ 0,01 Nm
        Output Resistive
        Weight aprox  400 g
        Operating temperature range -20ºC to +85ºC
        Direction Clockwise (CW)
        Axial or radial connection 2 meters cable or industrial connector (other cable lengths available on order)
        Female connector not included
        ELECTRICAL SPECIFICATIONS
        Reference code 5 kΩ
        10 turns
        1        		 10 kΩ
        10 turns
        2
        Voltage supply 30 VDC max 30 VDC max
        Output tolerance ± 5% ± 5%
        Resolution ± 0,025% ± 0,02%
        Thermal coefficientt ± 50ppm/C° ± 50ppm/C°
        Load 1w max 1w max
        Linearity ± 0,25% ± 0,25%
