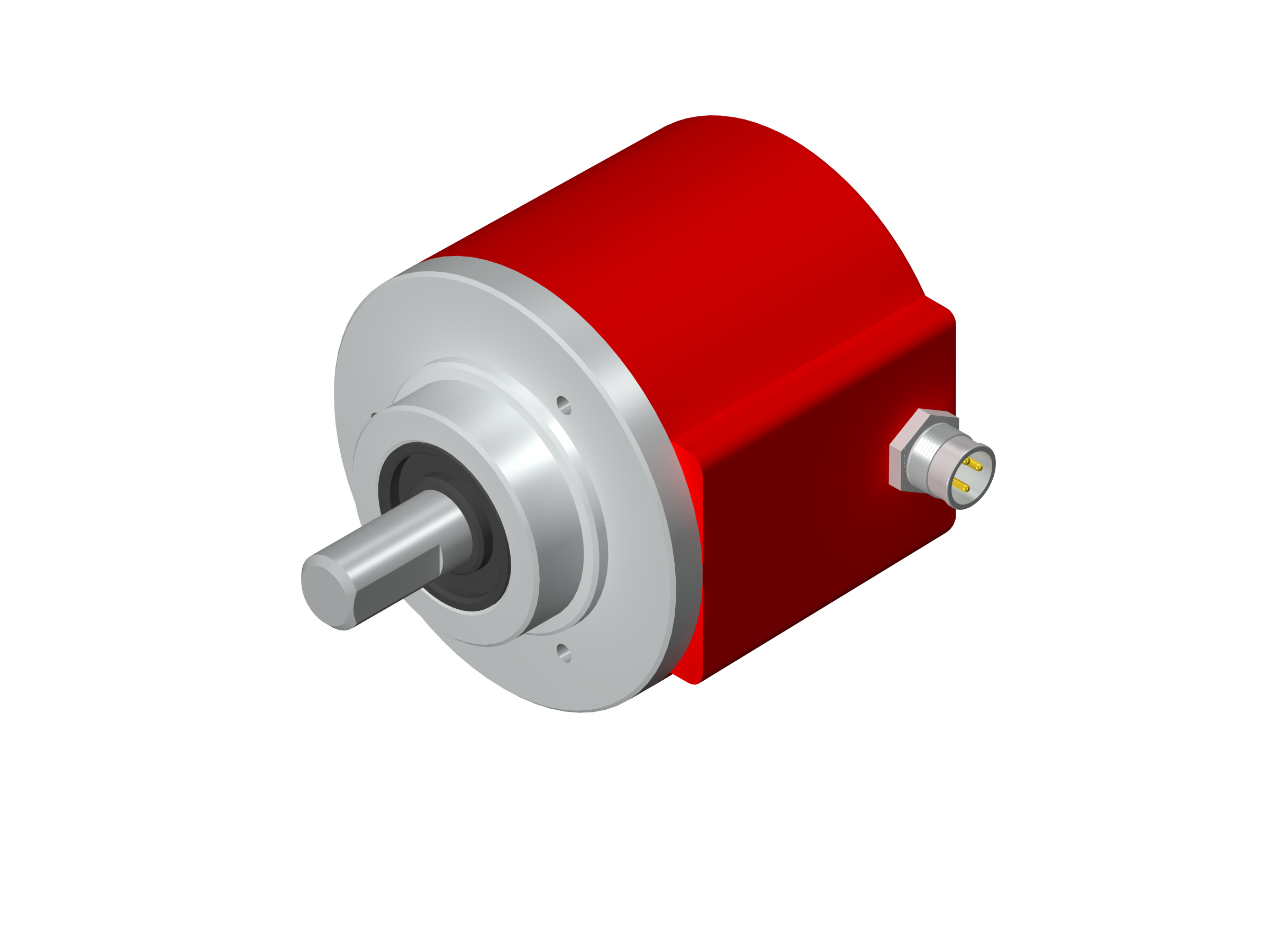

  4. POTENTIOMETER SERIE POT10

УГЛОВОЙ Датчик с ВЫхОДЯЩиМ ВаЛОМ ДЛЯ прОМЫшЛеннЫх приЛОжениЙ

  • Внешний диаметр 58 мм
  • Вал 6 или 10мм
  • Защита IP65 согласно DIN 40050
  • Диапазон измерений 360°/3600°/7200°
  • Выход резистивный , тока или напряжения
  • Соединение кабельное (доступна любая длина кабеля) или промышленный разъем
  • Система: прецизионный потенциометр
Спроси эксперта

    Наша команда экспертов будет ответить на ваши вопросы как можно скорее.

    Ваше имя*

    Ваш E-Mail*

    телефон

    компания

    Сообщение

    Подпишитесь на нашу рассылку?

    I have read and I accept the terms and conditions.*

    HOHNER AUTOMATION, S.L. informs you that the personal data that you provide by filling out this form will be treated with the purpose of sending you the information requested. The legitimation of the treatment is carried out through the consent of the interested party. Failure to enter your personal data will make it impossible to meet your request. You can exercise your rights of access, rectification, cancellation and deletion of personal data by contacting info@encoderhohner.com or by post to HOHNER AUTOMATION, S.L., P.I. Cal Batlle - C/ Dolors Bassa, 3, 17400 - Breda (Girona) Spain.

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        MECHANICAL SPECIFICATIONS
        Materials Cover: Zamak
        Housing: Aluminium
        Shaft: Stainless Steel
        Bearings Ballraces
        Bearings lifetime 1×1010 rev.
        Maximum number of revolutions permitted mechanically 50 rpm (180°, 1800°)
        100 rpm (360°, 3600°)
        200 rpm (7200°)
        Protection against dust and splashes according to DIN 60529 IP65
        Starting torque at 20ºC (68ºF) ≤ 0,02 Nm
        Maximum load permitted on axial shaft 40 N
        Maximum load permitted on radial shaft 60 N
        Output Potentiometer, Analog output
        Weight aprox 400 g
        Operating temperature range -20ºC to +85ºC
        Direction Clockwise (CW)
        Axial or radial connection 2 meters cable or industrial connector M8 (other cable lengths available on order)
        Female connector not included
        ELECTRICAL SPECIFICATIONS
        Reference code 1 kΩ or 10 kΩ
        1 turn
        1 or 2        		 1 kΩ or 10 kΩ
        10 turns
        1 or 2        		 0..10v
        3        		 4..20mA
        4
        Voltage supply 30 VDC max 30 VDC max 15…30 VDC 15…30 VDC
        Accuracy ± 15% ± 5% ± 0,3% ± 0,3%
        Linearity ± 2% ± 0,25% ± 0,5% ± 0,5%
        Thermal coefficient ± 50ppm/C° ± 50ppm/C° ± 50ppm/C° ± 50ppm/C°
        Load 1w max 2w max 5 kΩ min 600 kΩ min

        Accessories

        СОЕДИНИТЕЛИ

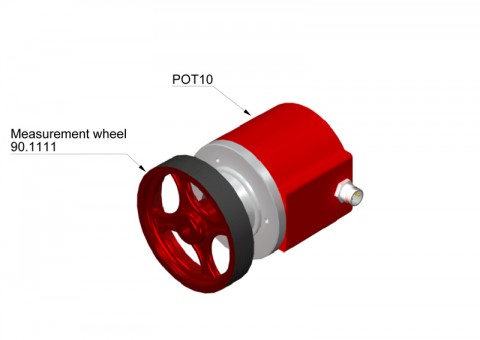

        ИЗМЕРИТЕЛЬНЫЕ КОЛЕСА

        Cross-flex

        Lami-flex

        ФЛАНЦЫ СОЕДИНЕНИЯ

        Oldham-flex-clamp

        Bellow-flex

        Pagu-flex

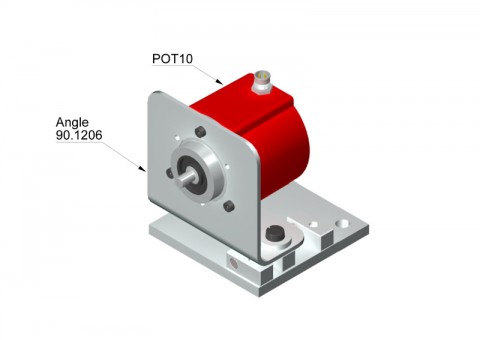

        УГЛЫ ОПОРЫ
