SERIE E58 HS SSI

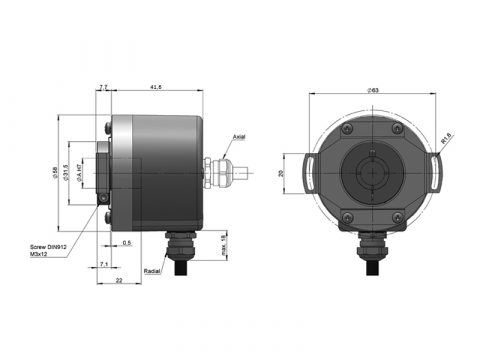

  • E58 HS planol

BLIND HOLLOW SHAFT ABSOLUTE SINGLETURN ENCODER

  • Singleturn resolution up to 13 bits
  • Magnetic technology
  • External diameter 58 mm
  • Blind hollow shaft Ø 8, 10, 12, 14 and 15 mm
  • Protection class IP65 according to DIN EN 60529
  • Connection by cable (other cable length available) or industrial connector M23
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message


    I have read and I accept the terms and conditions.*

    HOHNER AUTOMATION, S.L. informs you that the personal data that you provide by filling out this form will be treated with the purpose of sending you the information requested. The legitimation of the treatment is carried out through the consent of the interested party. Failure to enter your personal data will make it impossible to meet your request. You can exercise your rights of access, rectification, cancellation and deletion of personal data by contacting info@encoderhohner.com or by post to HOHNER AUTOMATION, S.L., P.I. Cal Batlle - C/ Dolors Bassa, 3, 17400 - Breda (Girona) Spain.

    Fields with a * are required.

    Download Datasheet / Manual

      Plaease enter your email to download product Datasheet.

      E-mail

      I have read and I accept the terms and conditions.*

      HOHNER AUTOMATION, S.L. informs you that the personal data that you provide by filling in this form will be treated with the purpose of sending you the information requested. You can exercise your rights of access, rectification, cancellation and deletion of personal data by contacting info@encoderhohner.com.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message


        I have read and I accept the terms and conditions.*

        HOHNER AUTOMATION, S.L. informs you that the personal data that you provide by filling out this form will be treated with the purpose of sending you the information requested. The legitimation of the treatment is carried out through the consent of the interested party. Failure to enter your personal data will make it impossible to meet your request. You can exercise your rights of access, rectification, cancellation and deletion of personal data by contacting info@encoderhohner.com or by post to HOHNER AUTOMATION, S.L., P.I. Cal Batlle - C/ Dolors Bassa, 3, 17400 - Breda (Girona) Spain.

        Fields with a * are required.

        MECHANICAL SPECIFICATIONS
        Materials Housing: Zamac
        Flange: Aluminium
        Shaft: Stainless Steel
        Bearings Ballraces
        Bearings lifetime 1×1010 rev.
        Housing fixing Flexible flange (included)
        Permitted misalignment ±0.5 mm axial, ±0.3 mm radial (90.1018)
        ±0.5 mm axial, ±0.3 mm radial (90.1027)
        ±0.5 mm axial, ±0.2 mm radial (90.1075)
        Shaft fixing Clamp
        Blind hollow shaft diameter 8, 10, 12, 14 and 15 mm
        Maximum number of revolutions permitted mechanically 6000 rpm – Standard
        10000 rpm – Upon request
        12000 rpm (≤ 12 bits) – Upon request
        Protection against dust and splashes according to DIN EN 60529 IP65
        Rotor inertia moment 2 gcm2
        Starting torque at 20ºC (68ºF) ≤ 0,01 Nm
        Maximum load permitted on axial shaft 20 N
        Maximum load permitted on radial shaft 40 N
        Weight aprox. 0,08 Kg
        Operating temperature range -40°C to +105°C
        Vibration according to DIN EN 60068-2-6 100 m/s2 (10Hz…2000Hz)
        Shock according to DIN EN 60068-2-27 1000 m/s2 (6ms)
        Axial or radial connection 2 meters cable or industrial connector M23 (other cable lengths available on order)
        Female connector not included
        ELECTRICAL SPECIFICATIONS
        Interface SSI
        Electronic output RS422
        Power supply (VCC) 4,75…30 VDC
        Consumption ≤ 100 mA
        Code Binary
        Gray
        Protocol SSI
        Singleturn resolution up to 13 bits
        Absolute accuracy ±0,35°
        Relative accuracy ±1,5 LSB
        Max. load capability / channel ±20 mA
        “Low” signal level < 0,8 VDC
        “High” signal level 2 … 5,5 VDC
        Frequency 50 kHz…2 MHz
        Short circuit protection Yes
        Protection polarity inversion Yes
        SKU: E58HS-SSI-15231-12 Categories: , ,
