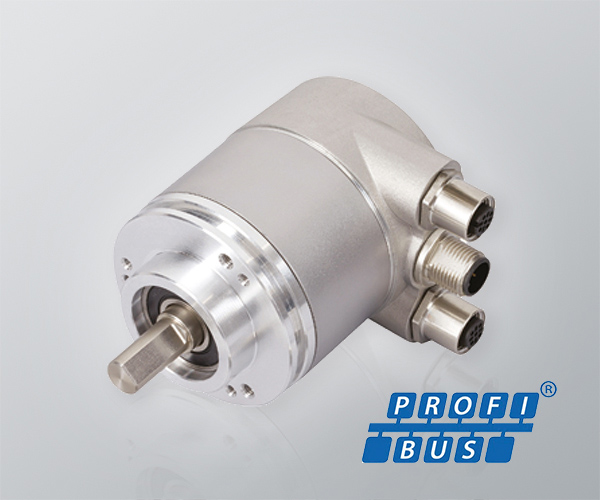

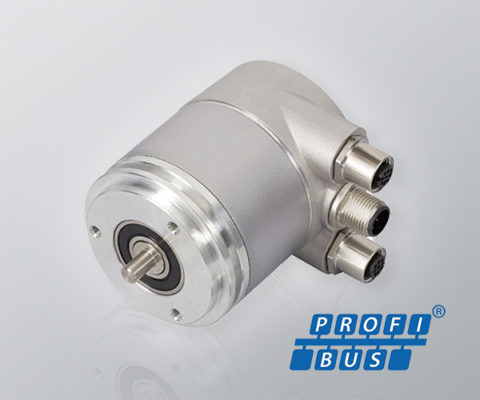

SERIE CS10 Profibus

SINGLETURN ABSOLUTE SOLID SHAFT ENCODER

  • Profibus DP protocol
  • Resolution up to 16 bits (65.536 points per turn)
  • External diameter 58 mm
  • Shaft Ø 6 or 10 mm
  • Protection class IP65 according to DIN EN 60529
  • Connection by cable or industrial connector 3 x M12
Ask an expert

    Our team of experts will asnwer your technical, product or application questions as soon as possible.

    Name*

    E-mail*

    Phone

    Company

    Country

    Message

    HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
    protection in our Privacy Policy.

    I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

    We would like you to give us your consent to:

    Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

    Fields with a * are required.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        MECHANICAL SPECIFICATIONS
        Materials Housing: Aluminium
        Flange: Aluminium
        Shaft: Stainless steel
        Bearings Ballraces
        Bearings lifetime 55×10⁸ rev. (Clamping) [40 N / 110 N]
        150×10⁸ rev. (Clamping) [40 N / 60 N]
        85×10⁸ rev. (Synchro) [40 N / 110 N]
        195×10⁸ rev. (Synchro) [40 N / 60 N]
        Shaft diameter 6 or 10 mm
        Maximum number of revolutions permitted mechanically ≤ 12000 rpm
        Protection according to DIN EN 60529 IP65
        Rotor inertia moment ≤ 30 gcm²
        Starting torque at 20°C (68°F) ≤ 0,03 Nm
        Maximum load permitted on axial shaft 40 N
        Maximum load permitted on radial shaft 110 N
        Weight aprox. 475 g
        Operating temperature range -40°C to +85°C
        Storage temperature range -40° to +85° C
        Humidity 98% RH, no condensation
        Vibration according to DIN EN 60068-2-6 100 m/s² (10Hz…1000Hz)
        Shock according to DIN EN 60068-2-27 1000 m/s² (6ms)

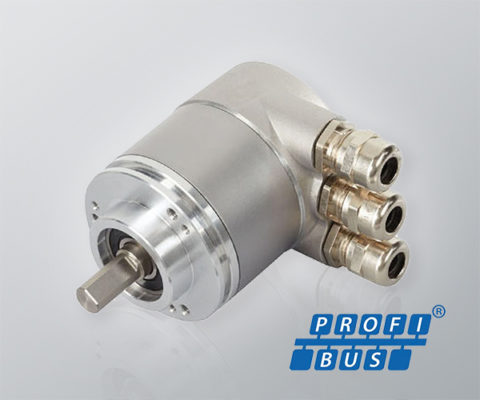

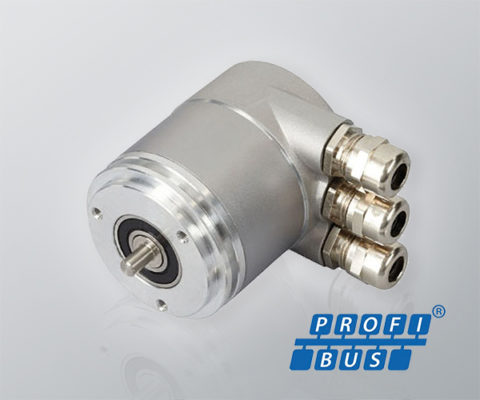

        Radial connection 3 x Cable Gland (Terminal Box)
        3 x M12 Connector
        Mating connectors not included
        ELECTRICAL SPECIFICATIONS
        Interface Profibus
        Output Driver Profibus Data Interface, galvanically isolated via opto-couplers
        Power supply 10…30 VDC
        Consumption ≤ 115 mA (10 VDC)
        ≤ 50 mA (30 VDC)
        Power Consumption ≤ 1.5 W
        Start-Up Time < 1 s
        Singleturn resolution up to 16 bit
        Accuracy (INL) ±0.0220° (14 – 16 bit)
        ±0.0439° (≤13 bit)
        Code Binary
        Short circuit protection Yes
        Protection polarity inversion Yes
        EMC: Emitted Interference DIN EN 61000-6-4
        EMC: Noise Immunity DIN EN 61000-6-2
        MTTF 13,5 years
