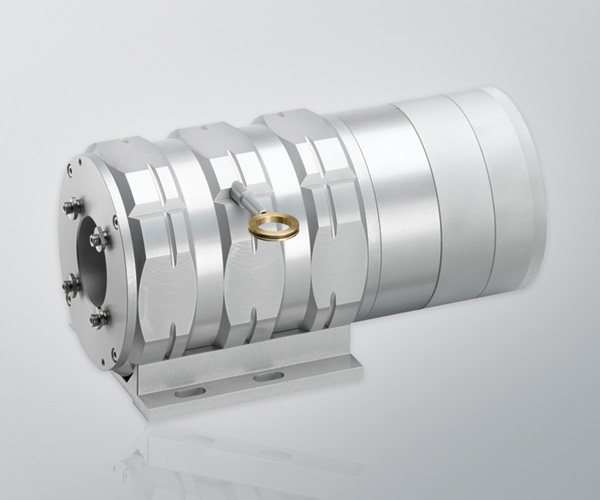

ROBUST DRAW WIRE SYSTEM FOR HEAVY DUTY INDUSTRIAL APPLICATIONS

  • Measuring linear distances up to 15 meters
  • Any mounting position possible
  • High speed up to 10 m/s
  • The drum shaft can drive any kind of rotary encoder or potentiometer
  • Stainless steel measuring cable Ø 0,90 mm
  • Different wire types and wire attachment options
Chiedere ad un esperto

    Il nostro team di esperti risponderà alle vostre domande nel più breve tempo possibile.

    Nome*

    E-mail*

    Telefono

    Azienda

    Messaggio

    Iscriviti alla nostra newsletter?

    Ho letto ed accettato Condizioni.*

    HOHNER AUTOMATION, S.L. ti informa che i dati personali che fornisci compilando questo modulo saranno trattati allo scopo di inviarti le informazioni richieste. La legittimazione del trattamento viene effettuata attraverso il consenso dell'interessato. Il mancato inserimento dei tuoi dati personali renderà impossibile soddisfare la tua richiesta. È possibile esercitare i diritti di accesso, rettifica, cancellazione e cancellazione dei dati personali contattando info@encoderhohner.com o per posta a HOHNER AUTOMATION, S.L., P.I. Cal Batlle - C/ Dolors Bassa, 3, 17400 - Breda (Girona) Spagna.n.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Name*

        E-mail*

        Phone

        Company

        Country

        Message

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        TECHNICAL SPECIFICATIONS
        Materials Housing: Aluminium
        Flange: Aluminium
        Measuring cable*: Ø 0,90 mm Stainless Steel
        Travel 300 mm / per turn
        Measurement range, up to (mm) 15000
        Minimum cable static tension 10,5 N
        Maximum cable static tension 15 N
        Max. Speed 4 m/s²
        Vitesse maximale 10 m/s
        Linearity ±0,05% f.s.
        Weight aprox. 8 Kg
        Operating temperature range – 20°C to +80°C – Standard
        – 30°C to +80°C – Special Customer BK
        Storage temperature range – 30°C to +80°C

        (*) Other types of cables are possible on special order.

        Accessories

        Poly-flex

        Angoli di supporto

        Union

        Route metriche

        Cross-flex

        Alu-flex

        Flange di fissaggio

        Spring-flex

        Lami-flex

        Connettori

        Oldham-flex

        Campane di fissaggio

        Oldham-flex-clamp

        Bellow-flex

        Pagu-flex

        Cavo pre montato

        Sistemi antirotazione flessibili

        SKU: 90.XT1210 90.XT1215 90.XT1210.BK 90.XT1210.BL 90.XT1210.BM 90.XT1210.BN 90.XT1215.BK 90.XT1215.BL 90.XT1215.BM 90.XT1215.BN Categories: , ,
