SINGLETURN ABSOLUTE AND INCREMENTAL HOLLOW SHAFT ENCODER
- SIN/COS + SIN/COS

SIN/COS + SIN/COS

  • Absolute resolution 1 SIN/COS to 360°
  • Incremental resolution 2048 SIN/COS
  • External diameter 58 mm
  • Hollow shaft Ø 12 or 14 mm
  • Protection class IP65 according to DIN EN 60529
  • Anti-rotation system through flexible flange
  • Connection by cable
Chiedere ad un esperto

    Il nostro team di esperti risponderà alle vostre domande nel più breve tempo possibile.

    Nome*

    E-mail*

    Telefono

    Azienda

    Messaggio

    Iscriviti alla nostra newsletter?

    Ho letto ed accettato Condizioni.*

    HOHNER AUTOMATION, S.L. ti informa che i dati personali che fornisci compilando questo modulo saranno trattati allo scopo di inviarti le informazioni richieste. La legittimazione del trattamento viene effettuata attraverso il consenso dell'interessato. Il mancato inserimento dei tuoi dati personali renderà impossibile soddisfare la tua richiesta. È possibile esercitare i diritti di accesso, rettifica, cancellazione e cancellazione dei dati personali contattando info@encoderhohner.com o per posta a HOHNER AUTOMATION, S.L., P.I. Cal Batlle - C/ Dolors Bassa, 3, 17400 - Breda (Girona) Spagna.n.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

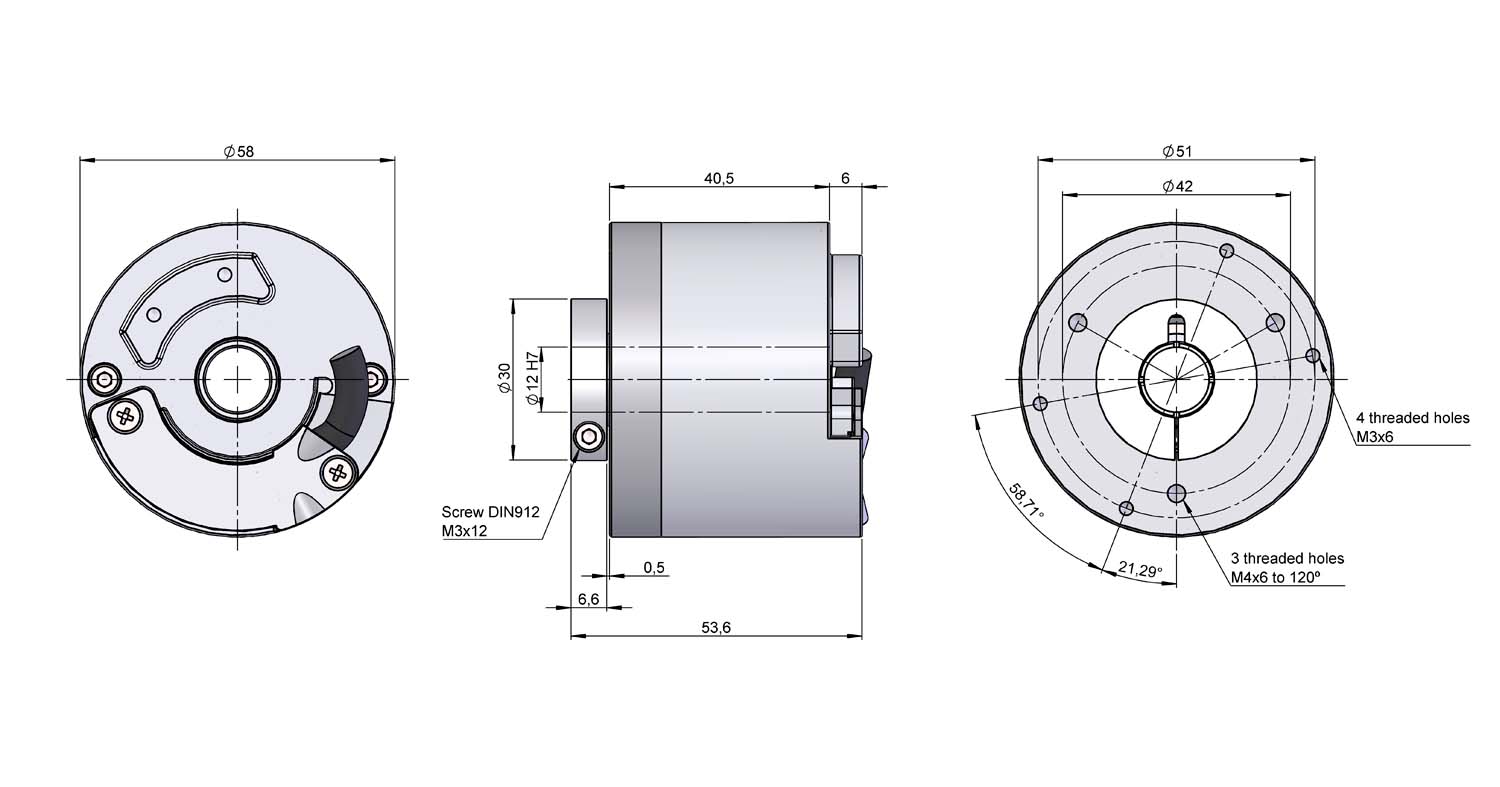

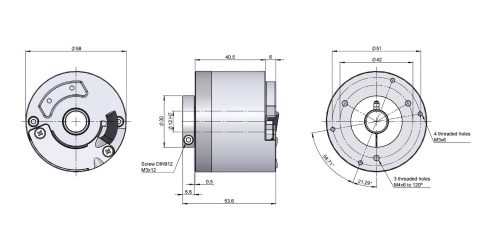

          TECHNICAL SPECIFICATIONS
          Materials Cover: Aluminium
          Housing: Aluminium
          Shaft: Stainless Steel
          Bearings Ballraces
          Bearings lifetime 1×1010 rev.
          Housing fixation Flexible flange 90.1027
          Flexible flange 90.1075
          Permitted misalignment ±0.5 mm axial, ±0.3 mm radial (90.1027)
          ±0.5 mm axial, ±0.2 mm radial (90.1075)
          Maximum number of revolutions permitted mechanically 6000 rpm
          Protection against dust and splashes according to DIN EN 60529 IP65 – Standard
          IP54 – Helicoidal connection
          Rotor inertia moment ≤ 3×10-6 Kgm2
          Starting torque at 20ºC (68ºF) ≤ 0,02 Nm
          Maximum load permitted on axial shaft 40 N
          Maximum load permitted on radial shaft 80 N
          Weight aprox. 0,4 Kg
          Operating temperature range -20ºC to +80ºC
          Vibration according to DIN EN 60068-2-6 100 m/s2 (10Hz…2000Hz)
          Shock accoording to DIN EN 60068-2-27 1000 m/s2 (6ms)
          Consumption ≤ 90 mA
          Power supply 5 VDC ±10%
          Electronic incremental output SIN/COS, 1 Vpp ±20%
          Incremental resolution 2048 SIN/COS
          Electronic absolute output SIN/COS, 1 Vpp ±20%
          Absolute resolution 1 SIN/COS to 360° mechanical
          Frequency (at.3dB) ≤ 200 kHz
          Signal offset 2,5 VDC
          Helicoidal cable 2 meters cable (other cable lenghts available or connector mounted at the end of the cable, upon request) or 30 cm cable + connector D-Sub 15p
          Radial connection 2 meters cable (other cable lenghts available or connector mounted at the end of the cable, upon request)
