SERIE E58 HS ANA

  1. Home
  2. Encoder assoluti monogiro
  3. Analogico
  4. SERIE E58 HS ANA

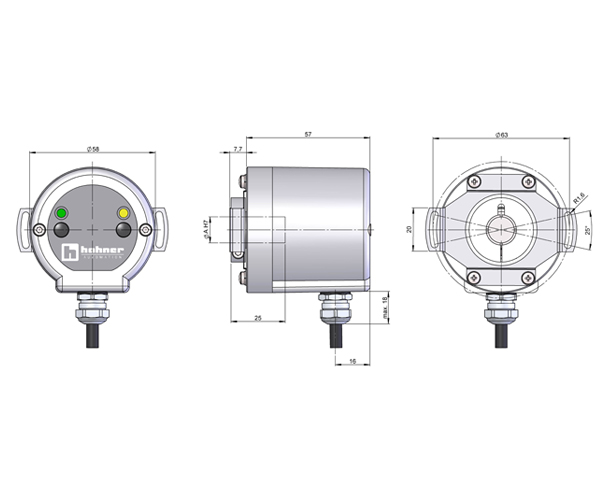

  • E58 ANA Radial Cable

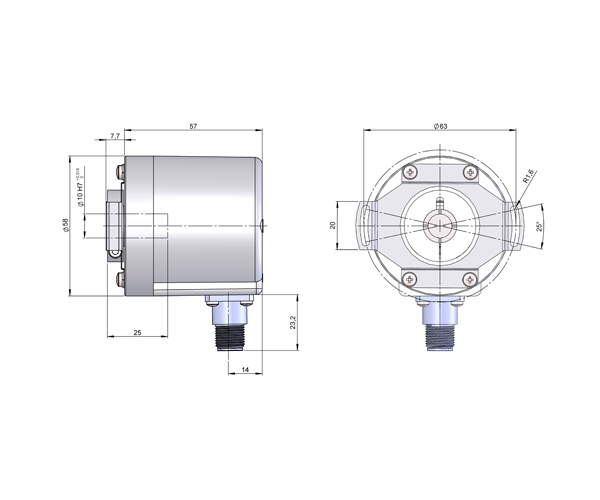

  • E58ANA Connector

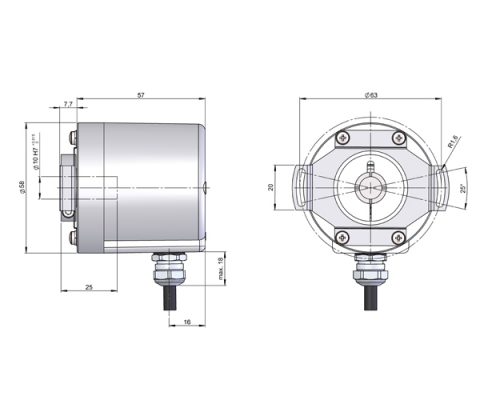

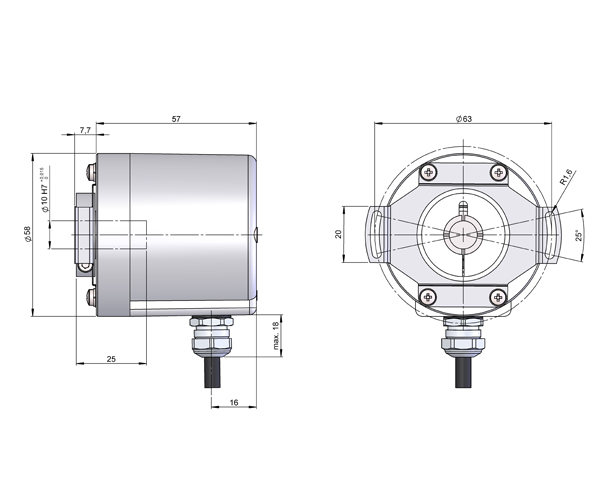

  • E58 ANA Cable

BLIND HOLLOW SHAFT ABSOLUTE SINGLETURN ENCODER

  • Analog output
  • Resolution up to 14 bits
  • Measuring range configurable up to 360º
  • External diameter 58 mm
  • Blind-Hollow shaft 6, 8, 10 or 12 mm
  • Protection class IP65 according to DIN EN 60529
  • Limit Switch Function
  • Connection by cable (other cable length available) or industrial connector M12
Chiedere ad un esperto

    Il nostro team di esperti risponderà alle vostre domande nel più breve tempo possibile.

    Nome*

    E-mail*

    Telefono

    Azienda

    Messaggio

    Iscriviti alla nostra newsletter?

    Ho letto ed accettato Condizioni.*

    HOHNER AUTOMATION, S.L. ti informa che i dati personali che fornisci compilando questo modulo saranno trattati allo scopo di inviarti le informazioni richieste. La legittimazione del trattamento viene effettuata attraverso il consenso dell'interessato. Il mancato inserimento dei tuoi dati personali renderà impossibile soddisfare la tua richiesta. È possibile esercitare i diritti di accesso, rettifica, cancellazione e cancellazione dei dati personali contattando info@encoderhohner.com o per posta a HOHNER AUTOMATION, S.L., P.I. Cal Batlle - C/ Dolors Bassa, 3, 17400 - Breda (Girona) Spagna.n.

      Please enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

          MECHANICAL SPECIFICATIONS
          Materials Cover: Zamac
          Housing: Aluminium
          Shaft: Stainless Steel
          Bearings Ballraces
          Bearings lifetime 1×1010 rev.
          Housing fixing Flexible flange (included)
          Permitted misalignment ±0.5 mm axial, ±0.3 mm radial (90.1018)
          ±0.5 mm axial, ±0.3 mm radial (90.1027)
          ±0.5 mm axial, ±0.2 mm radial (90.1075)
          Shaft fixing Clamp
          Blind hollow shaft diameter 6, 8, 10 and 12 mm
          Maximum number of revolutions permitted mechanically 6000 rpm
          Protection against dust and splashes according to DIN EN 60529 IP65
          Rotor inertia moment 60 gcm2
          Starting torque at 20ºC (68ºF) ≤ 0,02 Nm
          Maximum load permitted on axial shaft 40 N
          Maximum load permitted on radial shaft 80 N
          Weight aprox. 0,5 Kg
          Operating temperature range -40°C to +85°C – Standard
          -40°C to +105°C – Special Customer A01Z
          Vibration according to DIN EN 60068-2-6 100 m/s2 (10Hz…2000Hz)
          Shock according to DIN EN 60068-2-27 1000 m/s2 (6ms)
          Radial connection 2 meters cable or industrial connector M12 (other cable lenghts available on order)
          Female connector not included
          ELECTRICAL SPECIFICATIONS
          Interface Analog
          Electronic output 0..20mA , 4..20mA, 0..5V, 0..10V
          Power supply (VCC) 7-30V, 12-30V
          Consumption ≤ 100 mA
          Resolution 12 or 14 bits
          Range from 22,5º up to 360º
          Configurable parameters Range, Direction and Preset
          Rollover mode Yes
          Frequency 100 kHz
          Short circuit protection Yes
          Protection polarity inversion Yes

          Accessories

          Campane di fissaggio

          Angoli di supporto

          Cavo pre montato

          Bellow-flex

          Union

          Poly-flex

          Connettori

          Flange di fissaggio

          Route metriche

          Lami-flex

          Spring-flex

          Sistemi antirotazione flessibili

          Oldham-flex-clamp

          Cross-flex

          Pagu-flex

          Alu-flex

          SKU: E58HS-ANA-3415-14-CBL, E58HS-ANA-1227-12-NC4096 Categories: , , ,
