SERIE 36

3D

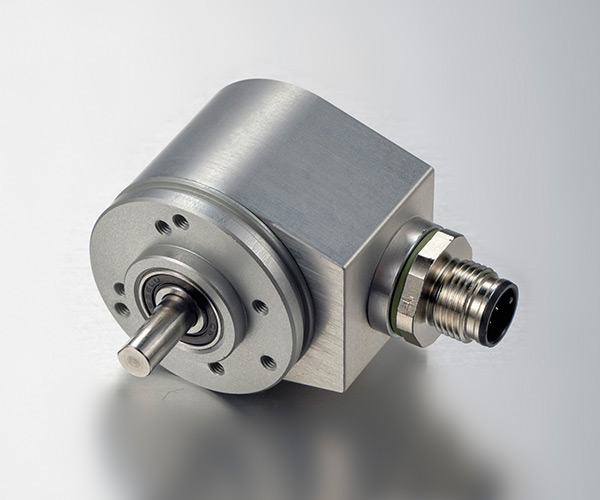

ENCODER INCREMENTALE AD ALBERO SPORGENTE PER APPLICAZIONI INDUSTRIALI

  • Risoluzione fino a 5.000 impulsi per giro

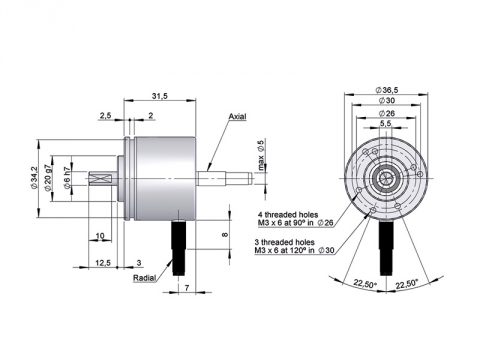

  • Diametro esterno 36,5 mm

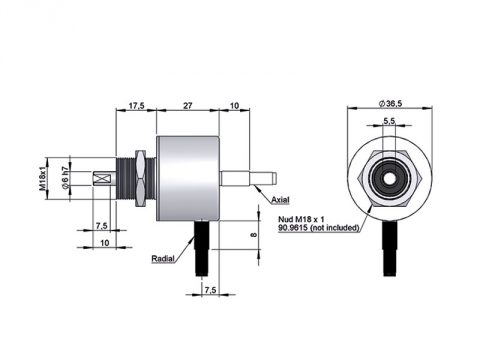

  • Albero 6 mm
  • Protezione IP65 secondo DIN EN 60529
  • Realizzazioni meccaniche, elettroniche e ottiche speciali su richiesta
  • Cavo di collegamento (disponibile qualsiasi lunghezza di cavo) o connettore industriale M12
  • Connettore femina inclusi



Chiedere ad un esperto

    Il nostro team di esperti risponderà alle vostre domande nel più breve tempo possibile.

    Nome*

    E-mail*

    Telefono

    Azienda

    Messaggio

    Iscriviti alla nostra newsletter?

    Ho letto ed accettato Condizioni.*

    HOHNER AUTOMATION, S.L. ti informa che i dati personali che fornisci compilando questo modulo saranno trattati allo scopo di inviarti le informazioni richieste. La legittimazione del trattamento viene effettuata attraverso il consenso dell'interessato. Il mancato inserimento dei tuoi dati personali renderà impossibile soddisfare la tua richiesta. È possibile esercitare i diritti di accesso, rettifica, cancellazione e cancellazione dei dati personali contattando info@encoderhohner.com o per posta a HOHNER AUTOMATION, S.L., P.I. Cal Batlle - C/ Dolors Bassa, 3, 17400 - Breda (Girona) Spagna.n.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

          OUTPUT SIGNALS
          OUTPUT CIRCUIT NPN Open Collector Push-Pull
          Differential
          RS422 (TTL compatible)
          Power supply 11…30 VDC 11…30 VDC 5 VDC ±5%
          Output voltage 11…30 VDC 11…30 VDC 5 VDC
          Consumption 40 mA Tipical: 45 mA
          Max: 150 mA
          Tipical: 70 mA
          Max: 150 mA
          Max. load capability / channel 40 mA ±30 mA ±20 mA
          Lenght of cable allowed 50 m (24 VDC) 100 m 1200 m
          “Low” signal level VOL < 0.4 VDC (24 VDC) VOL < 2.5 VDC VOL < 0.5 VDC
          “High” signal level VOH > 22 VDC (24 VDC) VOH > VCC – 3 VDC VOH > 2.5 VDC
          Frequency 100 kHz 200 kHz 300 kHz
          Short circuit protection Not permanent Yes Yes
          Protection polarity inversion Yes Yes No
          Channel A leads (90° electric) channel B, view from the shaft, shaft rotating clockwise
