  4. SERIE 100H/DUO
3D
  • S100 SERIE

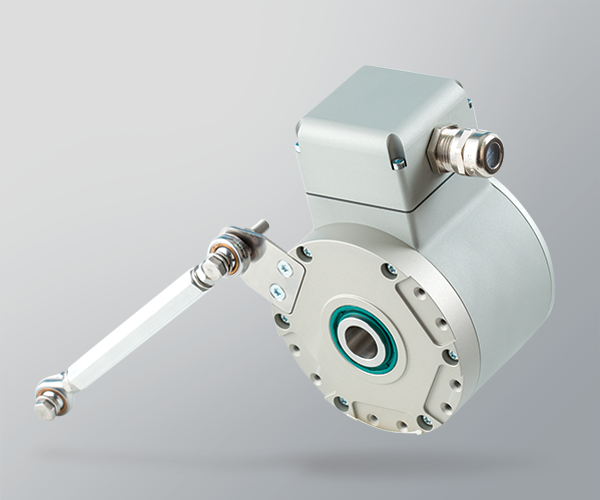

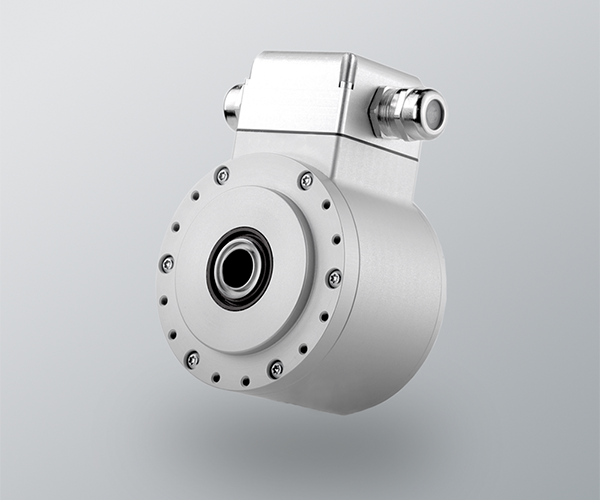

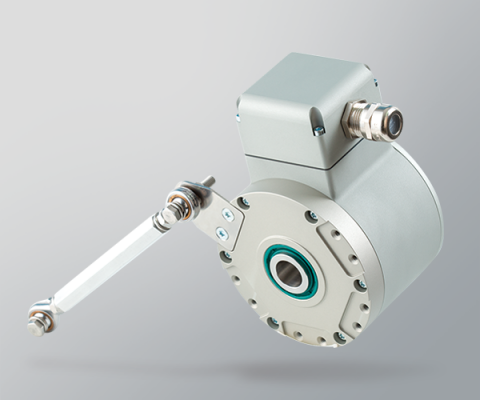

INCREMENTAL ENCODER FOR HEAVY DUTY INDUSTRIAL APPLICATIONS

  • Resolution up to 5.000 pulses per turn
  • External diameter 100 mm
  • Blind hollow shaft from Ø 12 to 16 mm
  • Integrated bearing insulation of up to 2,5 kV
  • Protection class IP66 according to DIN EN 60529
  • Connection by terminal box with plug-in spring terminal connectors, rotatable through 360°
  • Dual output available
Chiedere ad un esperto

    Il nostro team di esperti risponderà alle vostre domande nel più breve tempo possibile.

    Nome*

    E-mail*

    Telefono

    Azienda

    Messaggio

    Iscriviti alla nostra newsletter?

    Ho letto ed accettato Condizioni.*

    HOHNER AUTOMATION, S.L. ti informa che i dati personali che fornisci compilando questo modulo saranno trattati allo scopo di inviarti le informazioni richieste. La legittimazione del trattamento viene effettuata attraverso il consenso dell'interessato. Il mancato inserimento dei tuoi dati personali renderà impossibile soddisfare la tua richiesta. È possibile esercitare i diritti di accesso, rettifica, cancellazione e cancellazione dei dati personali contattando info@encoderhohner.com o per posta a HOHNER AUTOMATION, S.L., P.I. Cal Batlle - C/ Dolors Bassa, 3, 17400 - Breda (Girona) Spagna.n.

      Plaease enter your email to download product Datasheet.

      E-mail

      HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
      protection in our Privacy Policy.

      I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

      We would like you to give us your consent to:

      Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

      Fields with a * are required.

        Plaease enter your email to download product 3D File.

        E-mail

        HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
        protection in our Privacy Policy.

        I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

        We would like you to give us your consent to:

        Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

        Fields with a * are required.

        If you need 3D step-file of your reference contact us and you will receive it within one working day.

          Name*

          E-mail*

          Phone

          Company

          Country

          Message

          HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
          protection in our Privacy Policy.

          I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

          We would like you to give us your consent to:

          Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

          Fields with a * are required.

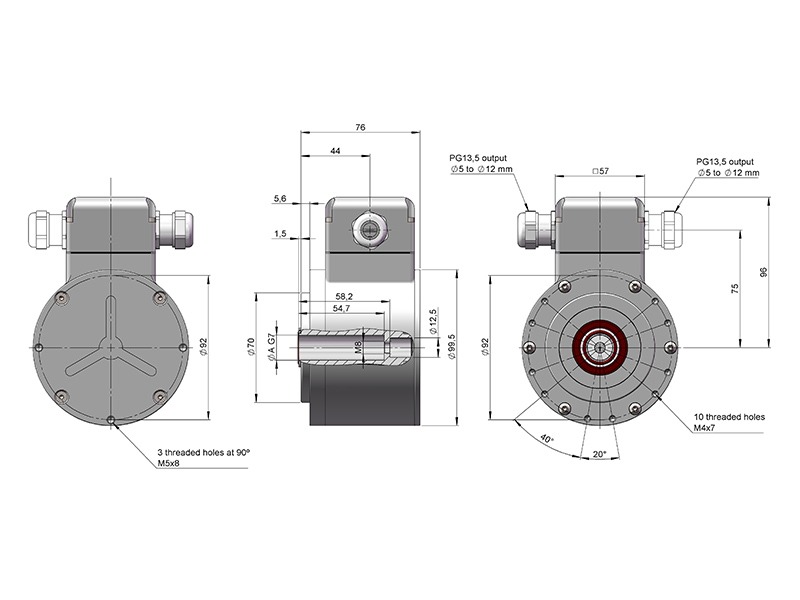

          MECHANICAL SPECIFICATIONS
          Materials Housing: Anodized aluminium
          Shaft: Stainless Steel
          Bearings Dual set of hybrid bearings with ceramic balls
          Bearings lifetime 1×1010 rev.
          Housing fixing Torque arm M6
          Permitted misalignment ±0,05 mm radial
          Shaft fixing Screw M5 or M6
          Hollow shaft diameter 12, 16 mm
          Shaft insulation 2,5 kV
          Maximum number of revolutions permitted mechanically 6000 rpm
          Protection against dust and splashes according to DIN EN 60529 IP66
          Rotor inertia moment ≈ 500 gcm2
          Starting torque at 20°C (68°F) ≤ 0,06 Nm
          Maximum load permitted on axial shaft ≤ 400 N
          Maximum load permitted on radial shaft ≤ 500 N
          Weight aprox. 1,7 Kg
          Operating temperature range -20°C a +80°C – Standard
          -40°C a +80°C – Special Customer YT00
          -20°C a +100°C – Special Customer YT01
          Vibration according to DIN EN 60068-2-6 300 m/s2 (10Hz…2000Hz)
          Shock according to DIN EN 60068-2-27 2500 m/s2 (6ms)
          Maximum pulses per turn 5.000
          Radial connection Terminal box, cable or M12/M23 connector

          Accessories

          Alu-flex

          Oldham-flex-clamp

          Campane di fissaggio

          Cavo pre montato

          Bellow-flex

          Poly-flex

          Union

          Lami-flex

          Route metriche

          Sistemi antirotazione flessibili

          Flange di fissaggio

          Cross-flex

          Oldham-flex

          Pagu-flex

          Connettori

          Spring-flex

          Angoli di supporto

          SKU: 100H-12111-5000 Categories: , , , , , , , ,
