SERIE MR

MAGNETIC INCREMENTAL ENCODER

  • Non-contacting measuring system
  • Easily assembling
  • 5…30 VDC Push-Pull not differential
  • High protection class IP67
  • Compact dimensions
  • For applications under possible adverse ambient conditions (vibrations, humidity, dust, etc.)
Buy Online
Ask an expert

Our team of experts will asnwer your technical, product or application questions as soon as possible.

Name*

E-mail*

Phone

Company

Country

Message

I have read and I accept the terms and conditions.*

Fields with a * are required.

Download Datasheet

Plaease enter your email to download product Datasheet.

E-mail

If you need 3D step-file of your reference contact us and you will receive it within one working day.

Do you have questions or need an offer?

Contact us

  • 2 + 33 =
MECHANICAL SPECIFICATIONS
Materials Flange: Aluminium
Hub material: Stainless Steel
Magnet Ferrite
Maximum number of revolutions permitted mechanically 6000 rpm
Shaft diameter 11, 14, 19 mm

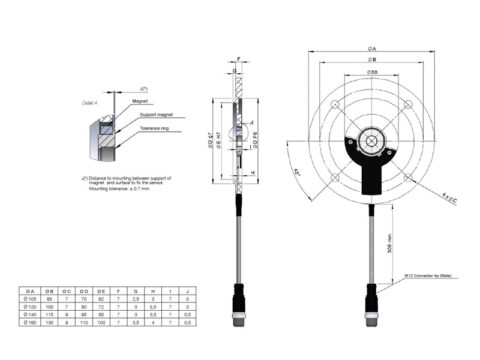

Housing fixing 4 holes (see dimensions table Ø B – Ø C )
Permitted misalignment ±0.7 mm axial, ±1 mm radial
Protection against dust and splashes according to DIN EN 60529 IP67
Weight aprox. 0,4 Kg
Operating temperature range -20ºC to +85ºC
Vibration according to DIN EN 60068-2-6 100 m/s2 (10Hz…2000Hz)
Shock accoording to DIN EN 60068-2-27 1000 m/s2 (6ms)
Axial or radial connection 30 cm cable ended with M12 4p industrial male connector
Female connector not included
ELECTRICAL SPECIFICATIONS
Measuring range 0…360°
Resolution 1 ppr
Power supply 5…30 VDCC
Consumption < 20 mA (without load)
Reverse polarity protection of power supply Yes (max. 2s)
Insulation test 1 KV
Insulation resistance 200 MΩ
Impulse sequence A 90° B Tolerance ± 25º el.
Motor shaft tolerance According to IEC Dimensions



OUTPUT SIGNALS
Electronic Output voltage Push-Pull not differential
“High” signal level (VOH) > VCC -3 VDC
“Low” signal level < 2.5 VDC
Frequency ≤ 20 kHz
Duty cycle signal 180° ± 18°
Lenght of cable allowed 50 m
Max. load capability / channel 30 mA
Output channels Square wave-Impulse, (2-channel) A+B
Short circuit protection No



Categories: , , , ,
Reference example: MR-105-14-001, MR-120-11-001, MR-140-19-001, MR-160-14-001
