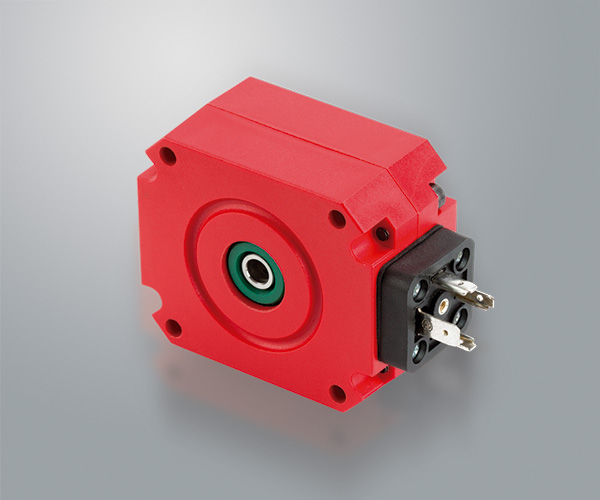

SERIE 92

INCREMENTAL HOLLOW SHAFT ENCODER FOR INDUSTRIAL APPLICATIONS

Any number of pulses available from 1 to 1.000 pulses
Hollow shaft 7 mm
Protection class IP54 according to DIN EN 60529
Flexible coupling integrated
Connection by cable (any cable lenght available) or industrial connector

Only for spare parts. Please contact us for more information

Buy Online

Ask an expert

Our team of experts will asnwer your technical, product or application questions as soon as possible.

Name*

E-mail*

Phone

Company

Country

Message

Leave this field empty

HOHNER AUTOMATION S.L. as the data controller will process your data for the purpose of replying to your query or request. You may access, rectify and erase your data, and also exercise other rights by consulting the additional detailed information on data
protection in our Privacy Policy.

I have read and accept the conditions contained in the privacy policy on processing of my data to manage my query or request.

We would like you to give us your consent to:

Send you commercial information about HOHNER AUTOMATION S.L.’s products, services and new features

Fields with a * are required.

Download Datasheet / Manual

Datasheet

TECHNICAL SPECIFICATIONS
Materials	Housing: ABS Shaft: Stainless Steel
Bearings	Ballraces
Bearings lifetime	1×10¹⁰ rev.
Maximum number of revolutions permitted mechanically	6000 rpm
Protection against dust and splashes according to DIN EN 60529	IP54
Rotor inertia moment	300 gcm²
Starting torque at 20°C (68°F)	10 Ncm
Permissible misalignment on axial shaft	± 1°
Permissible misalignment on radial shaft	± 0,2 mm
Weight aprox.	0,4 Kg
Operating temperature range	-20°C to +60°C
Storage temperature range	-20°C to +70°C
Vibration according to DIN EN 60068-2-6	100 m/s²
Shock according to DIN EN 60068-2-27	300 m/s²
Humidity	98 % not condensed
Frequency	50 kHz – 100 kHz (Push-Pull) 100 kHz (TTL Line Driver)
Maximum pulses per turn	1.000
Radial connection	2 meters cable or industrial connector (other cable lengths available on order) Female connector not included
